Rotovert application on Elfurbo Minitractor

Rotovert application





The Rotovert application acts directly on the transplant line without damaging the root and    leaf apparatus, uprooting the weeds and thus reducing the need for chemical herbicides.

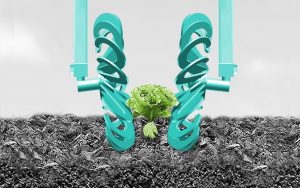

-N° 2 opposed Rotors, with curved and flattened blades;

– Set vertically in the direction of the plant;

– Penetrate up to 3/4 cm in the soil, eliminating the germination of weeds;

– We can work 7 days after transplantation and 10 days from sowing.





Machine configuration:

Technical features

Tecnical data

The Rotovert application works on all crops with inter-row distance from 15 to 35 cm.

Suitable for:

for some crops transplanted and seeded in row and on ridge (salad, celery, leek, onions, carrots, radicchio).

33) Inter row (distance between rows):

ø40 file (L) from 15 to 35

Single element

Used for one or more rows, flexible, fully adjustable with only one registry key.

Consisting of:

25) Parallelogrammo with springs pre-set variable load (A), with adjustment by means of a handle.

Free variable load (B),with crank adjustment.

 26) Structure elements carrier supports base set-up and options.

 27) HOES

Of varying sizes.

 28) Ridger

Multi row element

Used for multiple rows, flexible, fully adjustable with only one registry key.

Consisting of:

29) Parallelogram with predetermined variable load springs (A), with adjustment by  a handle.

Parallelogram with springs with variable free load (B), with crank adjustment.

30) Support for accessories and options.

31) Furrowers group of variable dimensions.

32) Ridger

Optional

Options list

SYSTEM TO LIFT DRIP IRRIGATION HOSE

Device that lifts the hose before the passage of the Rotoblizz.

Parallelogram with variable load, multifunctional.

Above we can mount a group to break the trace of the tractor’s wheels and ridging disks that serve to restore, where present, the ridge of the bed, both single and multiple.

Scraper discs

They are used to clean and reform the ridge

Photo - Machine and processing:
