Harvesting Machine SP2000

High performance, low efforts

The Harvester machine SP2000 is a machine conceived for:

– harvesting and digging out of rootstocks, vine cuttings;

– cleaning their roots from soil;

– sorting;

– storage of nursery plants











Predilige land of: medium dough, sabbiosi, morbidi

Suitable for production from: 100,000 to 300,000 up, with a daily production of around 15.000 cernite plants.

Work on root systems up to 30 cm.













Machine configuration:

Technical features

Structure and functioning.

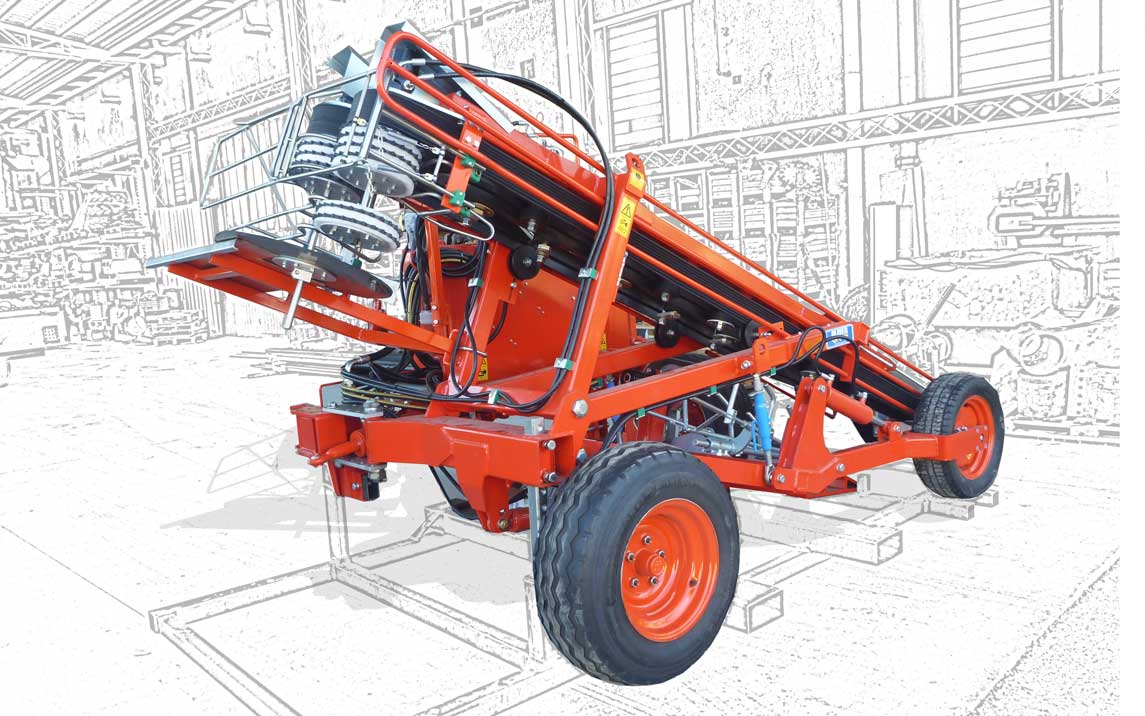

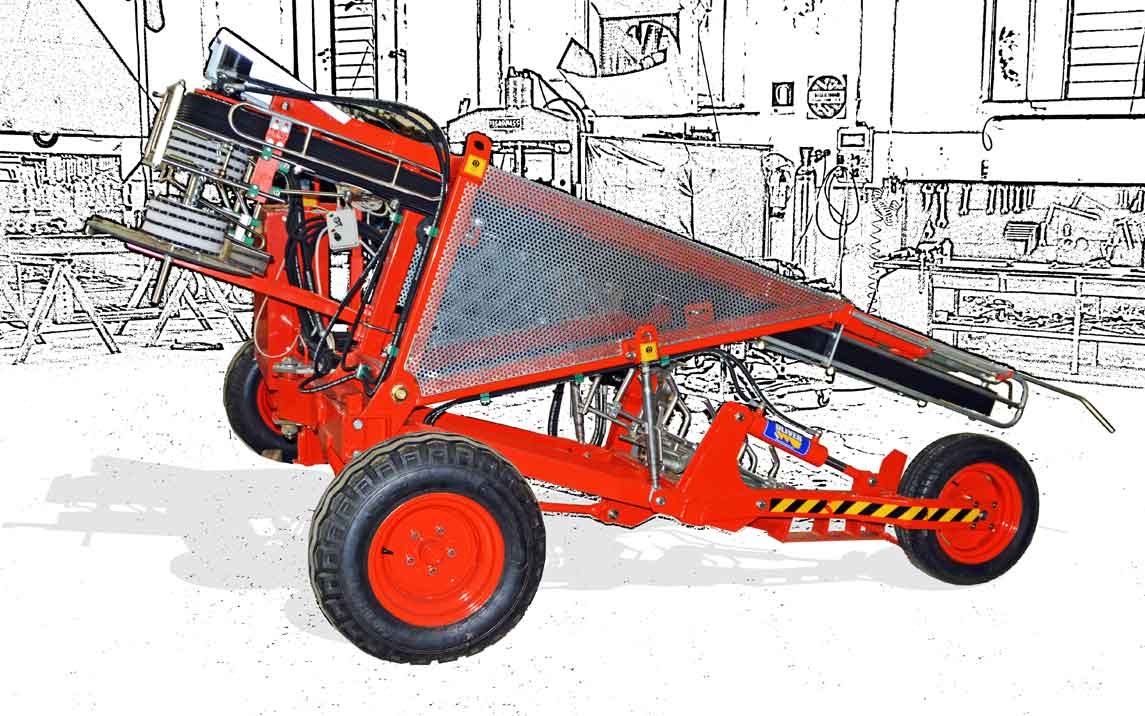

The Harvester machine SP2000 is a towed machine, consisting of a fixed frame (1), equipped with a third point (2) for hooking to the tractor. There is a mobile frame (3) which, when transported, allows the machine to be closed by 90 °, reducing its overall dimensions.

The SP2000 harvester machine extracts the plants (4) thanks to the digging knife (5), which penetrates deep into the soil, under the root system, up to 30 cm.

Simultaneously, the conveyor belt (6) intercepts the stem of the plant, dragging it towards the shaker (7).





The shaker (8) has a length that covers a good part of the belt conveyor area.

Oscillating alternately, it performs a complete skimming of the soil, which is located around the root system of the plants. The conveyor belt (9) keeps the plants in position, leading them to the operator (10) who collects them for sorting.



Detail of the passage of the plants on the conveyor belt while the shaker moves the soil from the roots.











Detail of the plant at the exit of the operator area, ready for sorting

At the rear, the SP2000 TXC harvester machine  mower, is equipped with a platform (11) where the operators, who sort the plants (12), are placed.

The machine is equipped with autonomous hydraulic / electric system:

13) oil tank

14) oil cooling system

15) tandem pump group that take the bike thanks to the gearbox connected to the tractor.

Tandem pumps feed the hydraulic motors of shakers, tapes and hydraulic cylinders.

16) hydraulic motors, which move the conveyor belt and the shaker.

17) speed regulators of the conveyor belt and the shaker.



The three hydraulic cylinders are managed with the control console (18).

Steering cylinder (19) corrects, and keeps the machine running while working.

Lift cylinder (20), raises and lowers the mobile frame during work and lifts it during movement.

Excavation drill cylinder (22), adjusts the working depth of the digging knife.

The two stabilizing wheels are adjustable in height and width.

The machine can be equipped with a directional knife, equipped with a rudder (31) which, penetrating into the ground (the depth is adjustable), helps to keep it while driving during the work phase.

Technical data

23) Machine dimensions:

open 3400x3200x2200

closed 1600x3200x2200, weight 1100 Kg

Platform dimensions:

24) large 4200x2100x1300, weight 400 Kg

25) small 3200x2100x1300, weight 300 Kg



Optional:

Options list

Pallet basket

To better manage the collection of plants on the platform, pallets are available (27) which, thanks to their high shoulders, safely store many plants.

27) Dimensions:

1070x1530x1500,  weight 40 Kg



Load / unload

kit To facilitate the loading and unloading of the pallet baskets (28), a kit consisting of a rotating carousel (29) is available, which allows the pallet baskets to be loaded  and  then   directed   onto  the  up /  down  rail (30).

29) Revolving carousel dimensions: 1160x1500x240, weight 95 Kg

30) Revolving carousel dimensions: 1160x1600x340, weight 50 Kg



Collection facilitator kit

To facilitate the sorting of the plants, a collection facilitator kit (32) is available that allows to reduce   the personnel on board. The kit takes the synchronized movement from the hydraulic motors of the 2 conveyor belts. Its particular structure conveys the plants in front of the operator, giving him time to check for any differences in height, and then separate them.

32) Dimensions:

1400x1400x730 weight 70 Kg



Tall plants driving

If the need arises to extract tall plants, a tall plant guide (33) is available which, once positioned, avoids folding them.

 33) Dimensions:

740x3650x730 weight 40 Kg
