Elfurbo Minitractor with Rotosark Elements

Rotoblizz application

Description

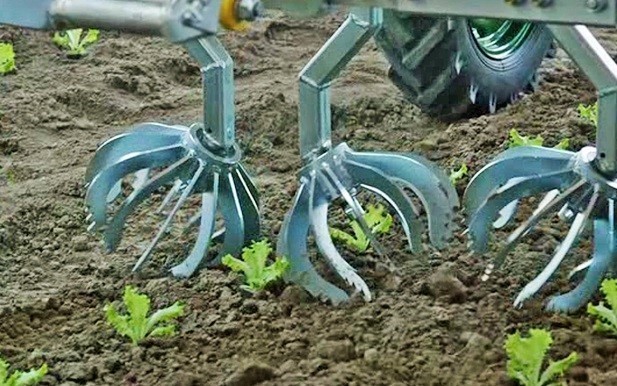

Rotoblizz weeding system works directly on the transplant row without damaging the root and leaf system, uprooting the weeds and thus reducing the need for chemical herbicides.

They are composed by:

–N°2 opposed Rotors, with curved blades;

-Inclinated 28° in the direction of the plant;

-Penetrate up to 4 cm in the soil, eliminating the germination of weeds;

-We can work 7 days after transplantation and 10 days from planting.

Technical information on our Rotoblizz Rotors:
DIAMETER	30 cm	35 cm	40 cm
INTER ROW DISTANCE	40-45 cm	50-60 cm	> 60 cm
USABLE WORKING SURFACE AREA FROM THE PLANT	12 cm	14 cm	16 cm
DISTANCE FRM PLANT	At 2 cm from plant

self propelled Elfurbo with Inter-row weeding equipment ROTOSARK suitable for transplanted or direct-seeded crops such as organic or transitioning crops including processing tomatoes, potatoes, rapeseed, sugar beets, lettuce, radicchio, invidia, cabbage, broccoli, cauliflower, garlic, leeks, beans, peanuts, chickpeas, lentils, broad beans and peas, pumpkins, vine plants, nursery rootstocks, fennel, strawberries, and medicinal herbs.

Machine configuration:

Technical features

STANDARD ROTOSARK ELEMENT

Used for one or multiple rows, flexible, fully adjustable with a single tool.

Structure:

Parallelogram with parallels, crank-operated load spring, and a 3-position beam with a pair of Rotoblizz in the center, and rear-mounted hoes for inter-row weeding.

Rotoblizz Rotors
Inter-row weeding kit: works in areas of the soil not worked by the Rotoblizz rotors

FULL OPTIONAL ROTOSARK ELEMENT

Front side hoes: to break up the soil and removing stones. Suitable for heavy soils.
Rotoblizz rotors.
Inter-row weeding kit: works in areas of the soil not worked by the Rotoblizz rotors.
Pair of ridgers: to mound up the soil

Multi row element

Used for multiple rows, flexible, fully adjustable with only one registry key. Consisting of:

29) Parallelogram with predetermined variable load springs (A), with adjustment by a handle.

Parallelogram with springs with variable free load (B), with crank adjustment.

30) Support for accessories and options.

31) furrowers group of variable dimensions.

32) ridger

Optional:

Options list

Pre-breaking star

Positioned in front of the Rotoblizz and Rotovert rotors, it breaks the soil

crust.

Suitable for clay soils.

SYSTEM TO LIFT DRIP IRRIGATION HOSE

Device that lifts the hose before the passage of the Rotoblizz.

RAKES

They level the soil after processing.

As an alternative to compacting rollers, they are suitable for industry tomato crops.

Parallelogram with variable load, multifunctional.

Above we can mount a group to break the trace of the tractor’s wheels and ridging disks that serve to restore, where present, the ridge of the bed, both single and multiple.

Scraper discs.

They are used to clean and reform the ridge

Video:

Photo - Machine and processing:

All
Stevia
