Soil bagger





Packing bags of soil for the nursery has never been so simple!









Thanks to the innovative Soilbagger technology, Oliveragro has optimized the packaging of nylon soil bags for nurseries, for large productions.

Suitable for bagging soil, compost, humus, peat and various substrates.





Soil bagger machine: a high productivity machine

Soil bagger machine part of Oliver Agro wide range of products for plant nursery

Oliver Agro: an expertise that speaks for itself

How Oliver Agro Soil bagger machine works

Having an experience in the agricultural machinery sector of over 40 years is certainly not for everyone, as is not the innovative offer. Used in the plant nursery, Oliver Agro’s machinery also includes machines such as bagging machines, filling bags or phyto-cells of various sizes with soil, compost, humus, peat.

How Oliver Agro Soil bagger machine works

Equipped with wheels, it can be parked anywhere. A hopper contains the soil which will be carried by 01 large horizontal conveyor to the another vertical one. This last will drop the soil into 02 outlets each, which pour the soil into the bags. The bags are on a chain with 10 stations which are moved by an electric motor. Each station will stop while the operators will unload the filled bags and load the empty ones. A simple job with results, in terms of yield and quantity, never seen before, given the need to support bags rather than jars.

Accessories and assistance for Oliver Agro Soil bagger machines

Oliver Agro is ready to offer after-sales services that help customers make the best use of the purchased machinery. Contact our professional team for more information on new accessories and technologies or just for assistance.

soilbagger machine



Machine configuration:

Technical features

Composition of the machine

The Soilbagger develops on a light tubular frame (1) and rests on 4 free wheels (2) that allow it to be positioned wherever you want in the work environment: both inside and outside.

Once positioned, the wheels are raised, lowering the locking pins (3).

Thanks to the special inlets (4) for the fork of the forklift, the machine can be easily transported.



A tank (5) allows the soil to be loaded (6) and, thanks to a conveyor belt (7), is conveyed towards the lifting belt (8).

The lifting belt (9), thanks to the blades (10), transports the soil to the top, towards the two distribution hoppers (11).

N.B. The two hoppers (11) are offset from each other, so as to load two rows of opposed bags in a single pass, increasing the yield in terms of production.

N.B. Electric shakers (11A), placed on hoppers, avoid the impaction of soil.

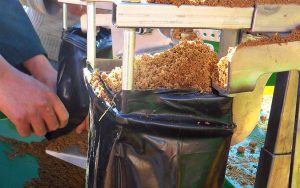

A motorized carousel table (12), equipped with 10 bag holders (13), collects the soil that comes out of the two hoppers (15) in the nylon bags (14).

N.B. A double chain + a double pinion, allow greater stability of the carousel table.

Three electric motors (16) give movement to the conveyor belt, the lifting belt and the carousel table.

From the control panel (17), we can adjust the speed of the tapes and the .

We can decide the stop times of the carousel table to allow the operations of  loading and unloading the bags by the operators.

Technical Details

Dimensions of the machine: 4.00×2.10×2.50 mt

Machine weight: 650 kg

Voltage: 380 V / 4 mt cable included



Bag sizes:

Ø mm 100 x 400 capacity 6 kg

Ø mm 150 x 400 capacity 9 kg

Application solutions with:

N ° 1 person in charge of the bags (18)

No.1 person to unload the bags (19)

No.1 person transplanting seedlings in bags previously filled with earth (20).

No. 1 person to supply the soil to the machine tank

(21)

Use of 6/9 kg bags

With a 12 sec machine stop, the daily yield equals 4.800 bags produced.

With a 6 sec machine stop, the daily yield equals 9,600 bags produced.

With a 5 sec machine stop, the daily yield equals 11,520 bags produced.



N.B. the machine stop allows the operators to perform the loading and unloading of the nylon bags.

N.B. the bags are filled with soil and, adding an operator, we can transplant the seedlings ready for sale.

Application solutions with:

N °2  people in charge of the bags (22)

No.2  people to unload the bags (23)

No.2  people transplanting seedlings in bags previously filled with earth (24).

No. 1 person to supply the soil to the machine tank

(25)

Use of 6/9 kg bags

With a 4 sec machine stop, the daily yield equals 14.400 bags produced.

With a 3 sec machine stop, the daily yield equals 19,200 bags produced.



N.B. the machine stop allows the operators to perform the loading and unloading of the nylon bags.

N.B. the bags are filled with soil and, adding an operator, we can transplant the seedlings ready for sale.
