Self-propelled hydrostatic straddle carrier machine with variable rear track, multi-purpose.
It is suitable for use in different crops and at different stages of the crop itself.
It simplifies the various operations, reducing human effort, times and increasing the homogeneity of the work, obtaining a better yield on the product, in terms of quality and quantity.
It can mount different equipment that perform a variety of operations.
Jack TMT is developed on a three-wheeled chassis, with a rear track (1) that varies according to the inter-row: from a minimum of 1.8 meters to 2.4 meters.
In height the available light (2) is 1.6 meters.
All the TMT Jack devices, including the hydrostatic motors (3) that give movement to the machine, are managed by the hydraulic system (3-1), powered by the 40 HP 4-cylinder liquid-cooled Kohler engine (4).
The control station (5) offers the operator maximum visibility on the work area.
The command post is composed of:

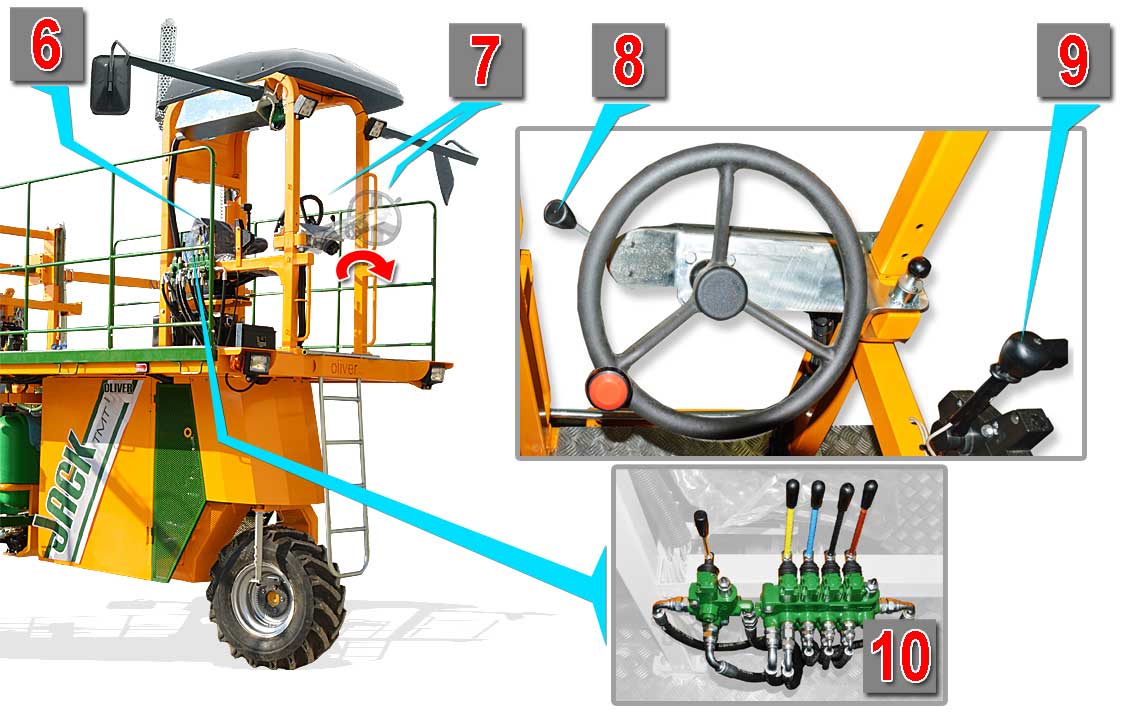

6) Ergonomic seat, equipped with an electrical safety sensor, which turns off the engine if the operator should move away from the control station.
7) Hydraulic guide (tilting to prefix the operator’s ascent)
8) Advance lever
9) Directional lever (forward / backward) (movement of the tool bar and service commands).
10) Leve commands on the applications.
11) General command console
– Engine start / stop group
– Tachometer
– Count hours
– Oil pressure
– Lighting system management (front / rear lights, work lights, directional indicators)
– Electric brake
– Treatment bar delivery commands
12) liters counter for treatment bar
13) Front / rear car lights
14) Work lights
15) Protection roof
16) Rear-view mirrors
17) Odometer mechanism on motorized steering wheel.
The TMT Jack is equipped with an autonomous hydraulic / electric system and is equipped with:
18) Left hydraulic power supply socket
19) Right hydraulic power supply socket
20) Power supply services outlet
21) 12 Volt electrical socket
The quick couplings that connect the applications to the machine, show the same colors of the levers that control them (22).
Available applications
Application for the collection / storage of tobacco leaves
N.B. The application can also be set for the collection of vegetables, fruit and bulbs.
The application rests on a mobile structure (23), equipped with legs to park it when the equipment is not used.
Composed of N °3 lower work stations (24), occupied by operators who collect tobacco leaves directly from the plant.

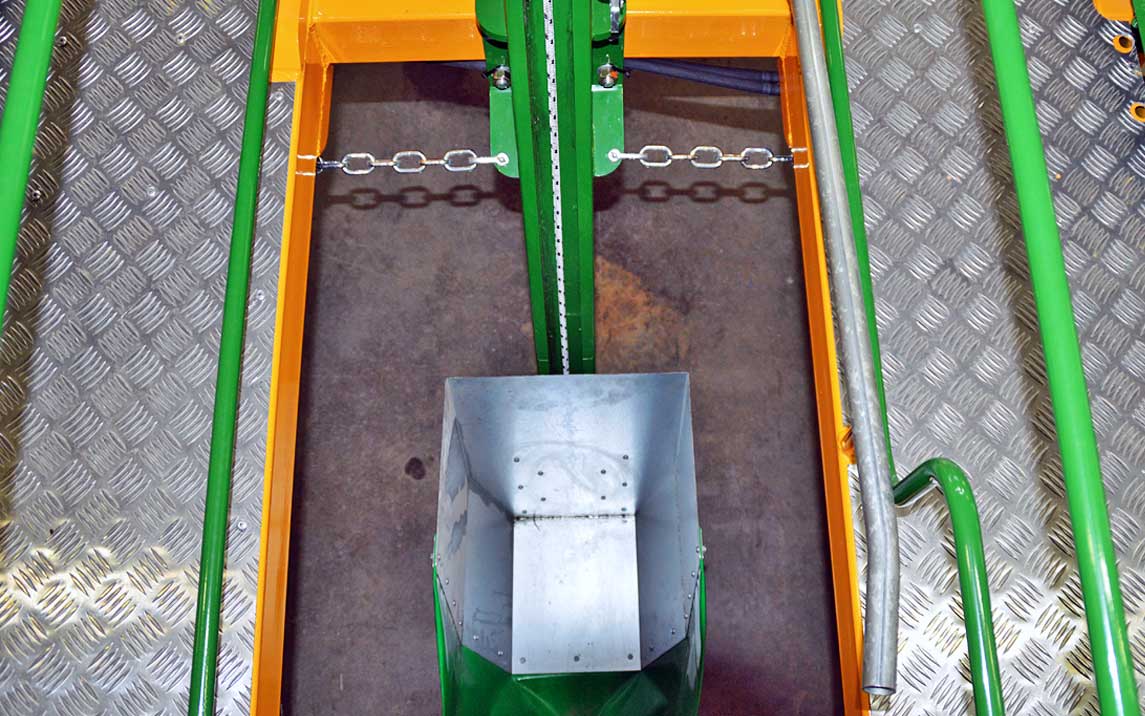

Each station consists of a seat for the operator (25) and a basket / lift (26) which, once filled with leaves, is called by the operator of the upper floor.
Application for the collection / storage of tobacco leaves
The upper work station (27) is set up with the addition of extendable platforms (28) and is occupied by several operators who perform a series of manual operations for sorting and storing tobacco leaves.
For the ascent / descent of the baskets, special pedals are used (29).
N.B. Once the automatic guide (30) has been inserted, the operator assigned to the control station can work alongside the staff responsible for storing the product in the upper workstation.
Application for the collection / storage of tobacco leaves
Phases of work and productivity
Jack TMT collects up to 6 tons of tobacco a day, and can do it in two ways.
First solution involving 7 operators.
No. 3 operators (31) involved in the collection.
N ° 2 operators (32) in charge of storageand packaging of tobacco leaves (n.b. 1 is also enabled to drive the vehicle).
Once the machine is filled, the operator enabled to drive takes the load to the company where:
N ° 2 operators (33) stick the leaves into the frames, placed on a frame used for drying in the oven (34).
Second solution involving 5 operators.
No. 3 operators involved in the collection (35).
N ° 2 operators (n.b. 1 is also enabled to drive the vehicle) stuff and insert the leaves into the frames, placed on a frame (36) positioned directly on the TMT Jack.
Once the machine is filled, the operator enabled to drive brings the load to the company where the frame carrying the canvas is unloaded by Combinet to be fired (38).
Treatment bar application
Electro-hydraulic equipment consisting of two distinct components:
39) Atomizer
40) Treatment Bar
It rests on a mobile structure (41), equipped with pivoting adjustable wheels for the release of the group and to park it when the equipment is not used.
Once the equipment is attached to the machine, the pivoting wheels are removed.
Treatment bar application
Atomizer
Electro / hydraulic system for the nebulization of treatment products.
It mounts a proper system that works by connecting to the electro / hydraulic system of the machine.
Consisting of:
41) Cistern.
42) System / hand wash tank.
43) Product level indicator.
44-45) Plumbing / electrical system
Treatment bar application
Treatment bar
It supports the product distribution system.
Consisting of:
46) Painted / galvanized metal structure with fixed and movable tubulars, with hydraulic uprights for 1,8 mt.
47) N ° 20 jets spray product of the TRIJET type, including anti-drop.
On each of the 8 rows (with variable distance from 0.8 to 1 m), 3 jets are arranged.
We can hydraulically:
48) Change the working height (1.8 meters).
49) Fold the outer arms for the bulk during transport.
N.B. all operations are managed from the command station.
Localized herbicide application
Electro-hydraulic equipment consisting of two distinct components:
50) Atomizer
51) Localized weeding bar
It rests on a mobile structure (52), equipped with pivoting adjustable wheels for the release of the group and to park it when the equipment is not used.
Once the equipment is attached to the machine, the pivoting wheels are removed.
Cistern and group
Electro / hydraulic system for the nebulization of treatment products.
It mounts a proper system that works by connecting to the electro / hydraulic system of the machine.
Consisting of:
53) Cistern.
54) System washing tank.
55) Hand-washing tank.
56) Product level indicator.
57) Plumbing / electrical system
Localized herbicide bar
It supports the product distribution system.
Consisting of:
58) Galvanized metallic structure with fixed and mobile tubulars, with hydraulic uprights for 1,8 mt.
59) Element for localized weeding, formed by a parallelogram with springs, where the locator accessory is anchored, consisting of a plafon where two jets of the TRIJET type are included, including anti-drop (60).
The jets deliver the product in a defined area, thanks to a brush perimeter of nylon bristles, which takes the form of the plafon.
When not used, 2 articulated supporting wheels allow the parking of the single element.
N.B. The element for localized weeding is constructed in useful working dimensions (61)
We can hydraulically:
62) Varying the working height (1.8 m)
63) Fold the outer arms for the bulk during transport.
N.B. all operations are managed from the command station.
Application of suckering treatments
Electro-hydraulic equipment consisting of two distinct components:
64) Cistern
65) Transporter group set up with lances sprays product
It rests on a mobile structure (66), equipped with pivoting adjustable wheels for the release of the group and to park it when the equipment is not used.
Once the equipment is attached to the machine, the pivoting wheels are removed.
N.B. During displacements (67), the external arms are closed hydraulically.
Cistern and group
Electro / hydraulic system for Suckering application
It mounts a proper system that works by connecting to the electro / hydraulic system of the machine.
Consisting of:
68) Cistern produced from 300-400 lt
69) Hydraulic / electric system with pump 100 lt for dosing coverage of 8 lances.
70) Quick couplings to the machine plant
71) Handwash tank.
Transporter group set up with lances sprays product.
It is a Transporter (72) type structure, mechanically clamped to the machine, consisting of fixed and tilting crosspieces that mount 8 span lance sprays (73).
The operators perform the treatments using the appropriate lances.
N.B. the dosage of the product is carried out by the operator on the command station.
Tecnical data
A) Machine wit hout applications
(H) max 3.400,0 mm
(L) max 2.470,0 mm
(P) max 3.500,0 mm
Mass 17.000,0 Kg
B) Machine with tobacco collection
(H1) max 3.400,0 mm
(L1) max 3.250,0 mm
(P1) max 5.260,0 mm
Mass with tobacco collection 600,0 Kg
C) Machine wit atomizer for weeding
(H2) max 4.100,0 mm
(L2) max 7.400,0 mm
(P2) max 4.000,0 mm
Mass atomizer for weeding 400,0 Kg
D) Machine with atomizer for Promaline
(H3) max 4.100,0 mm
(L3) max 7.400,0 mm
(P3) max 4.000,0 mm
Mass atomizer for Promaline: 400,0 Kg
Hydraulic oil tank capacity 80 lt
Fuel tank capacity 29 lt
Battery 12 V / 100 A
Maximum speed 20 Km / h
Maximum slope can be overcome both uphill and downhill 25%
Maximum lateral inclination, in conditions of evenly distributed masses 5%
