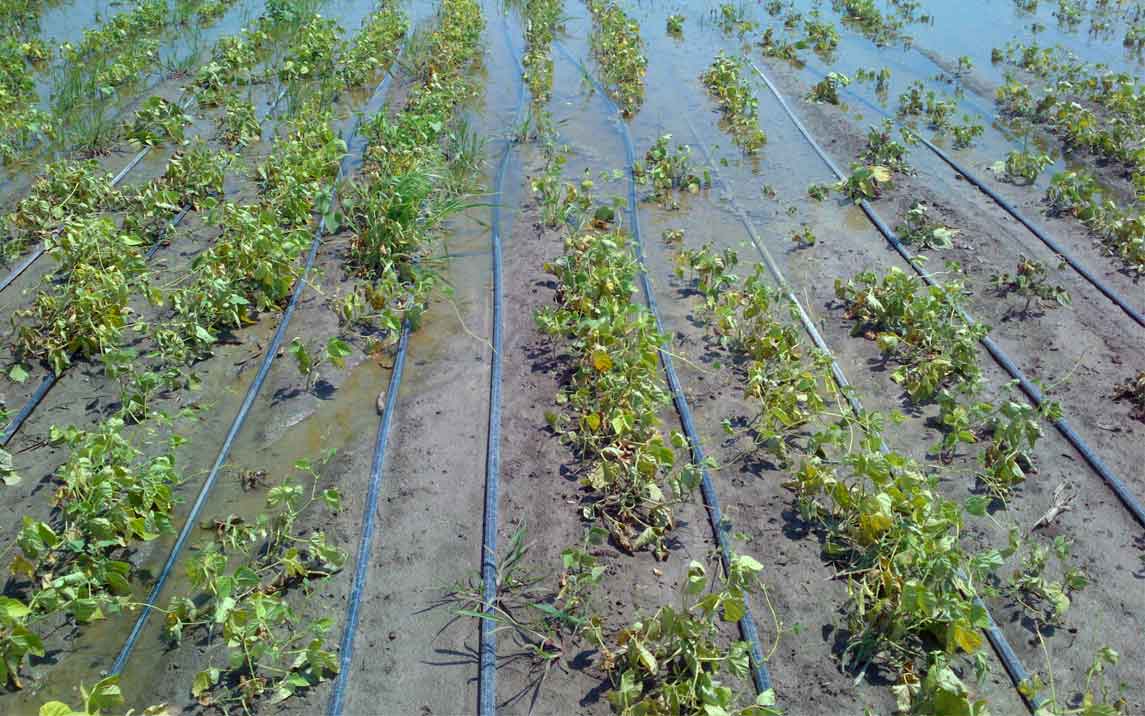

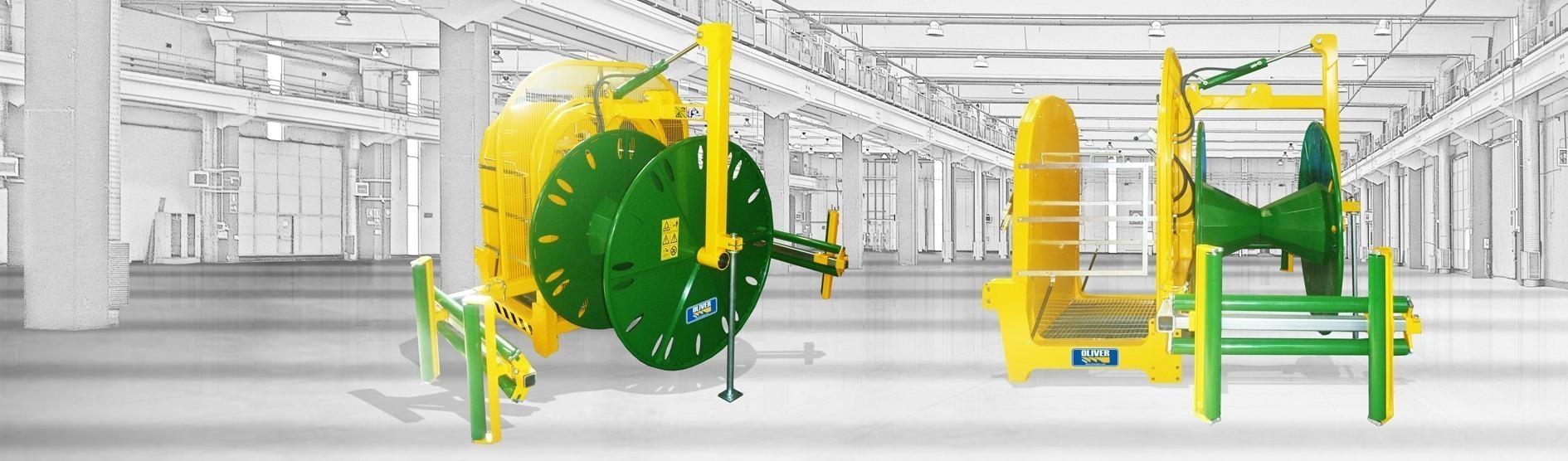

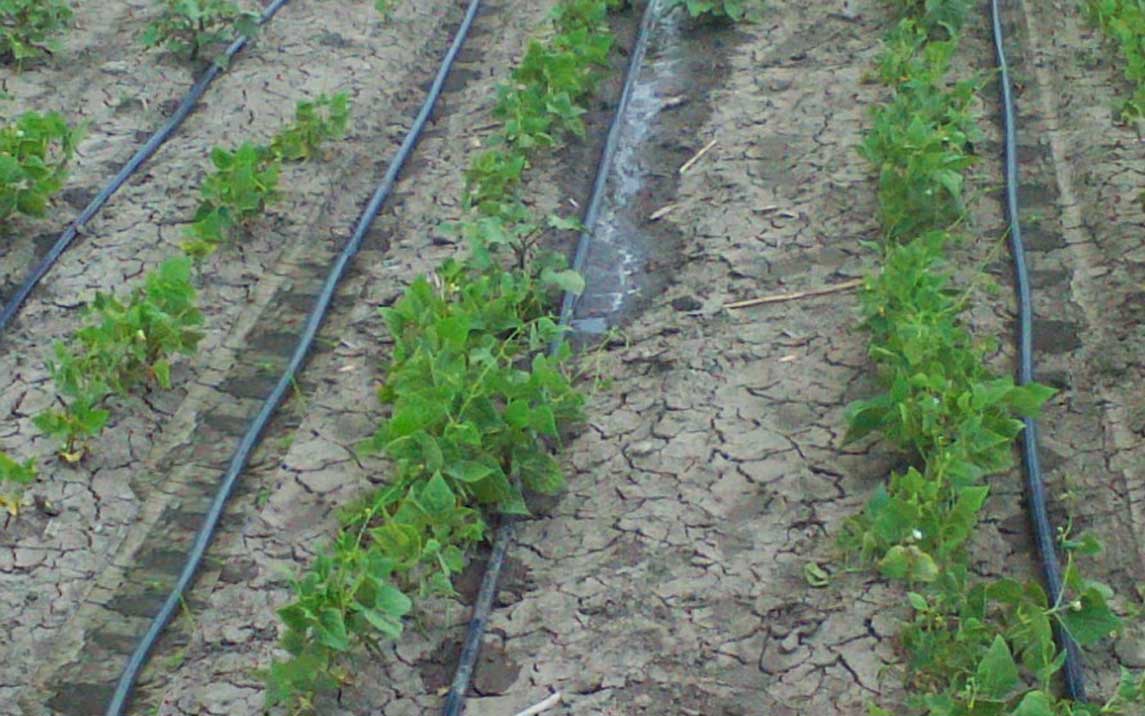

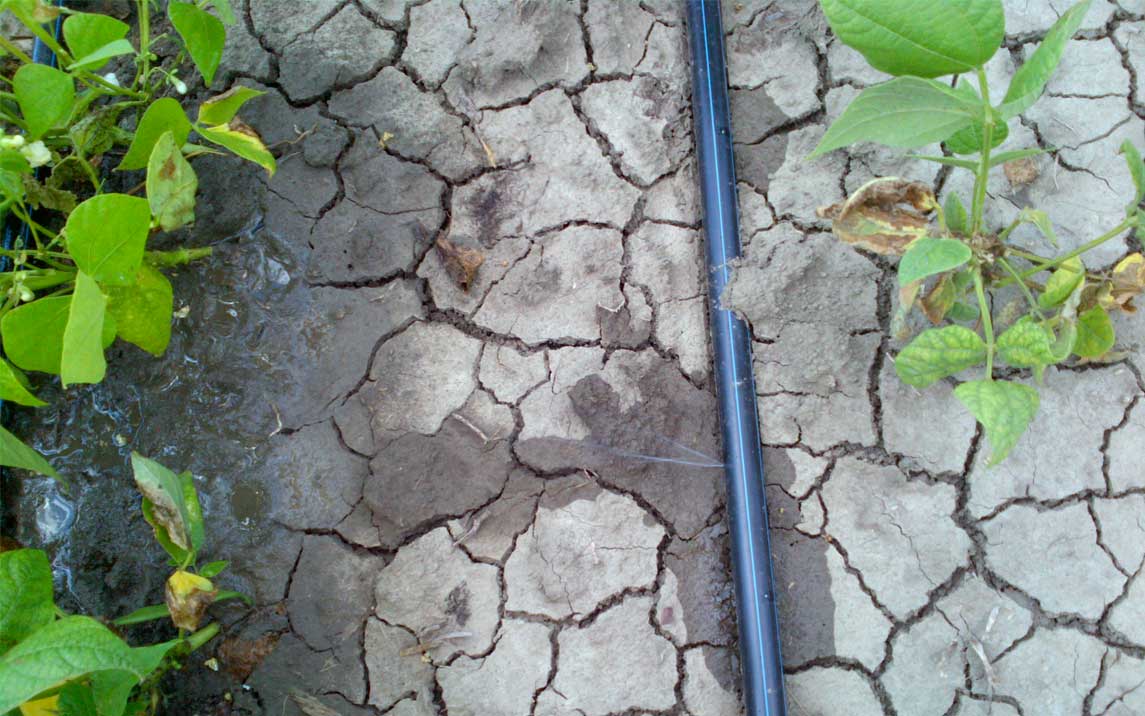

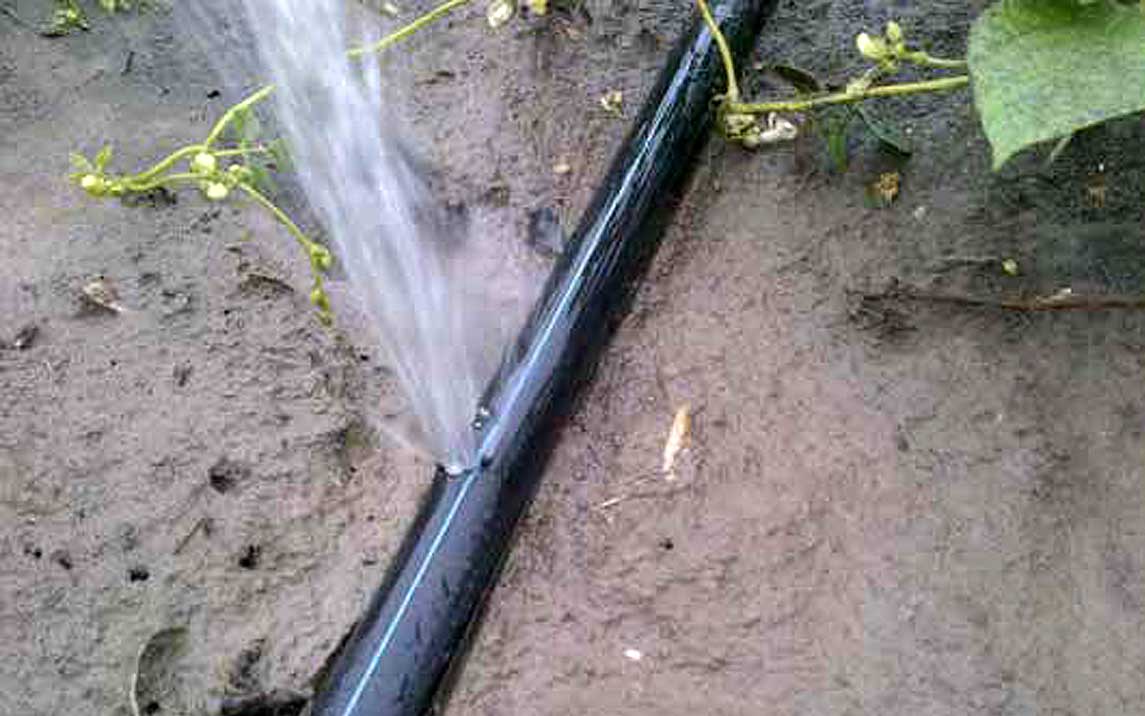

Drip irrigation hose collector

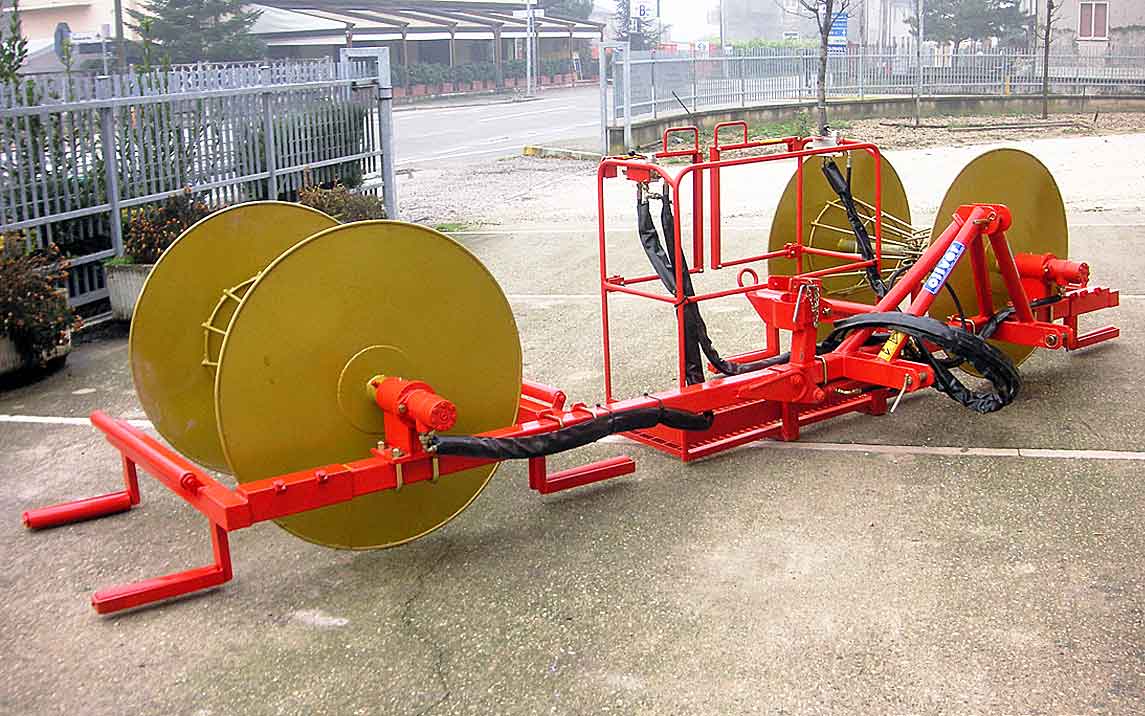

With one or double conveyor roller

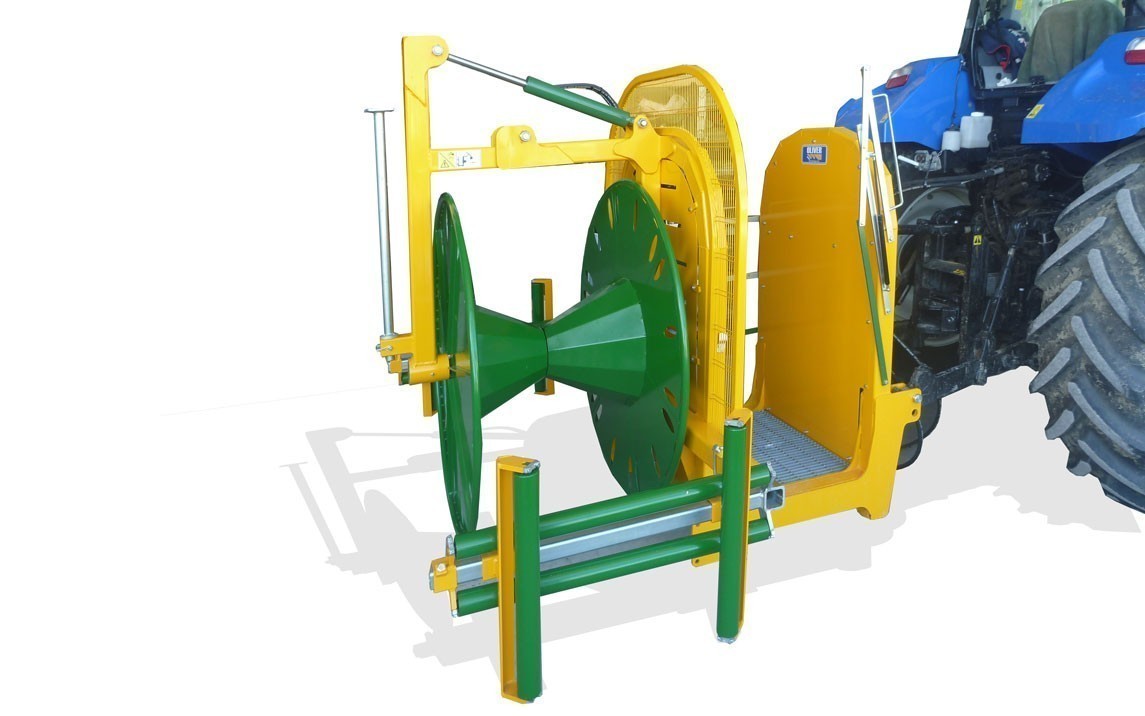

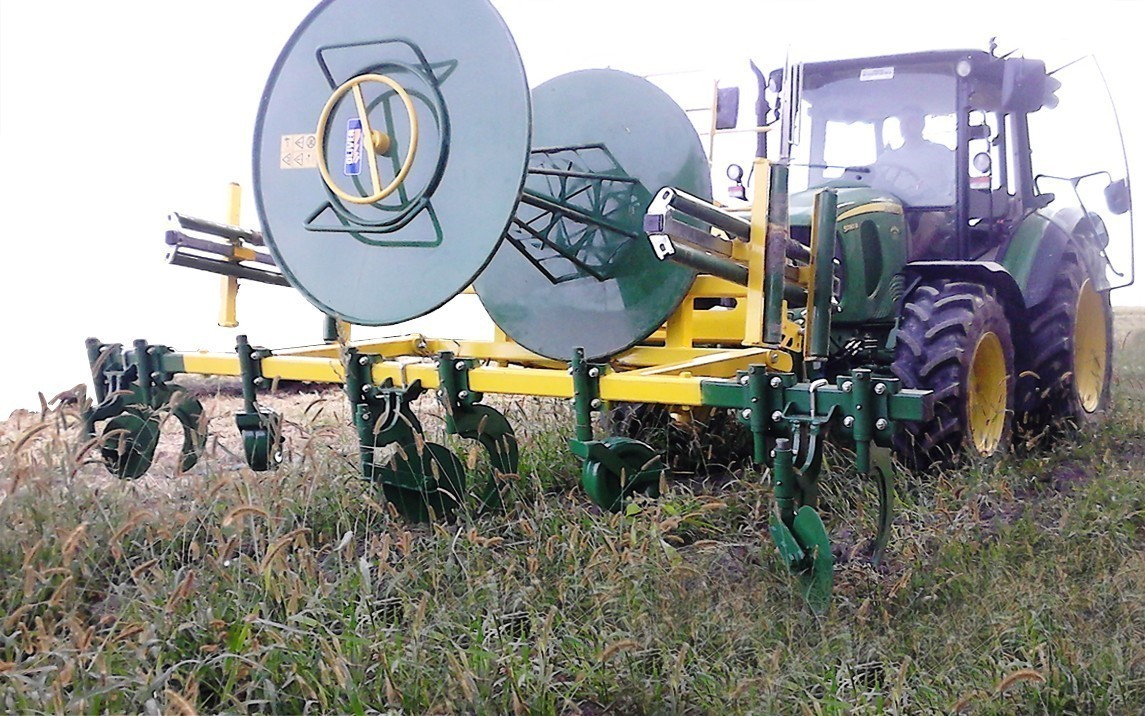

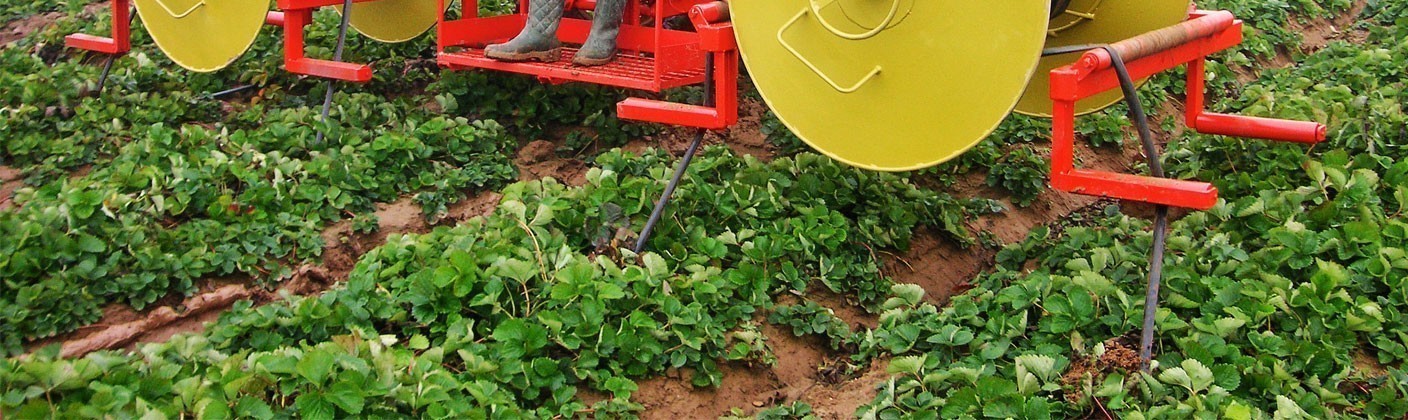

Machine for collecting and winding the irrigation hose from the field.

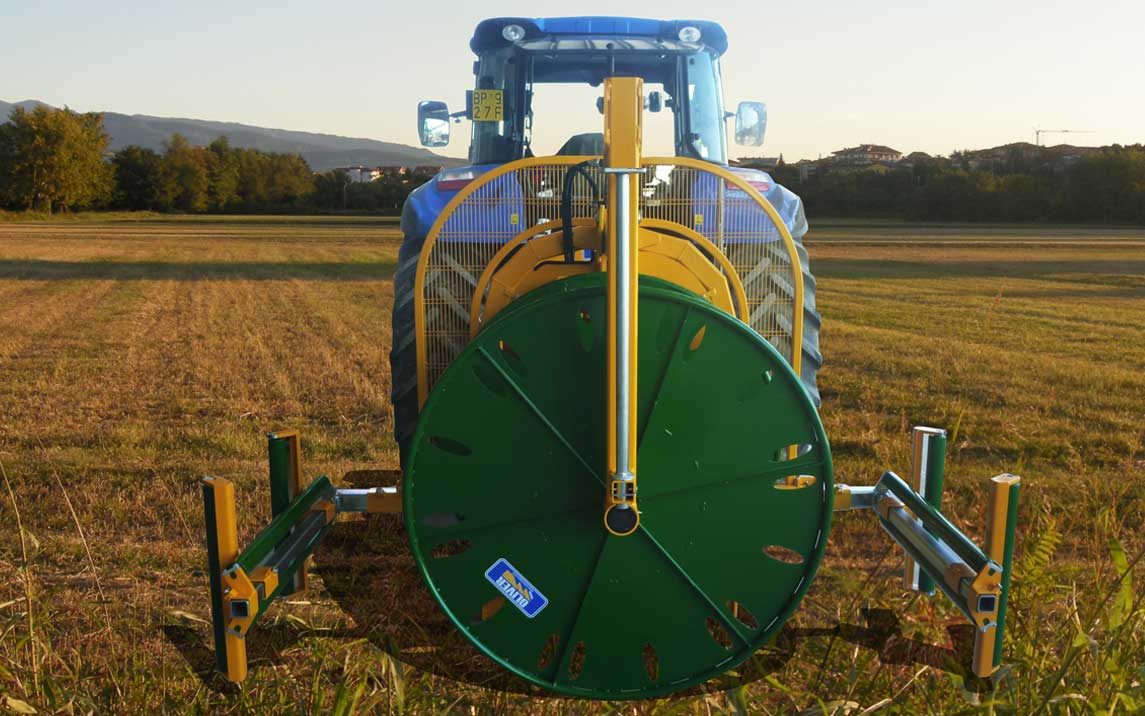

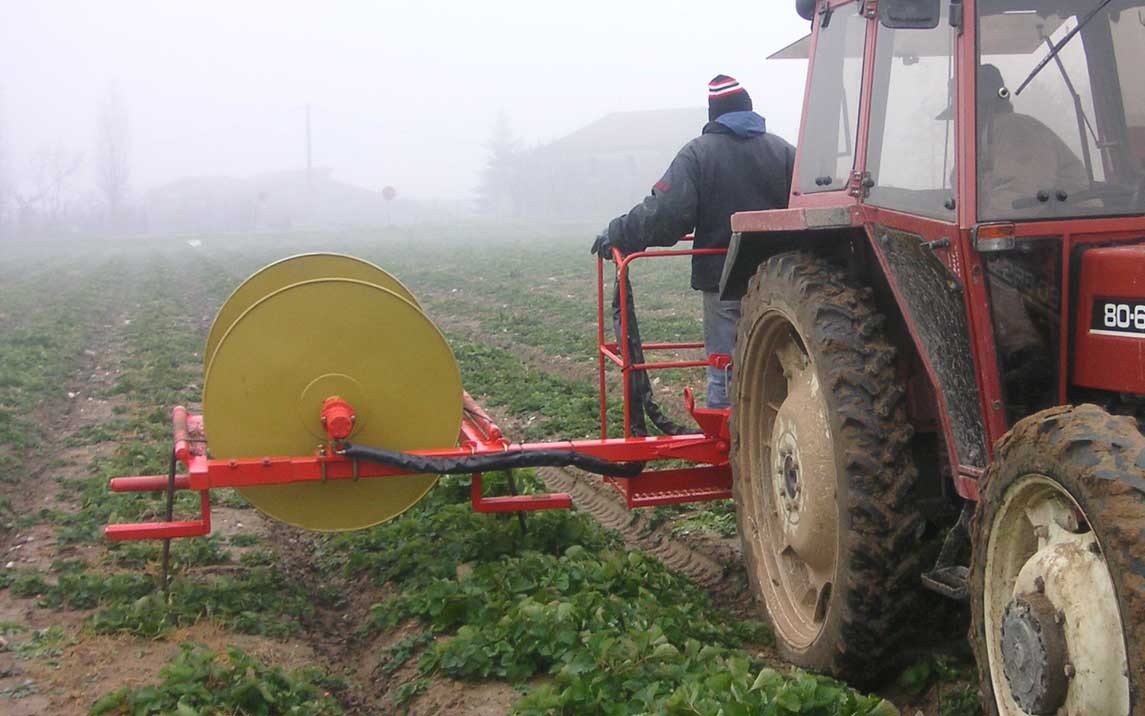

Fixed with the third point to the tractor, work raised from the ground.







Machine configuration:

Technical features

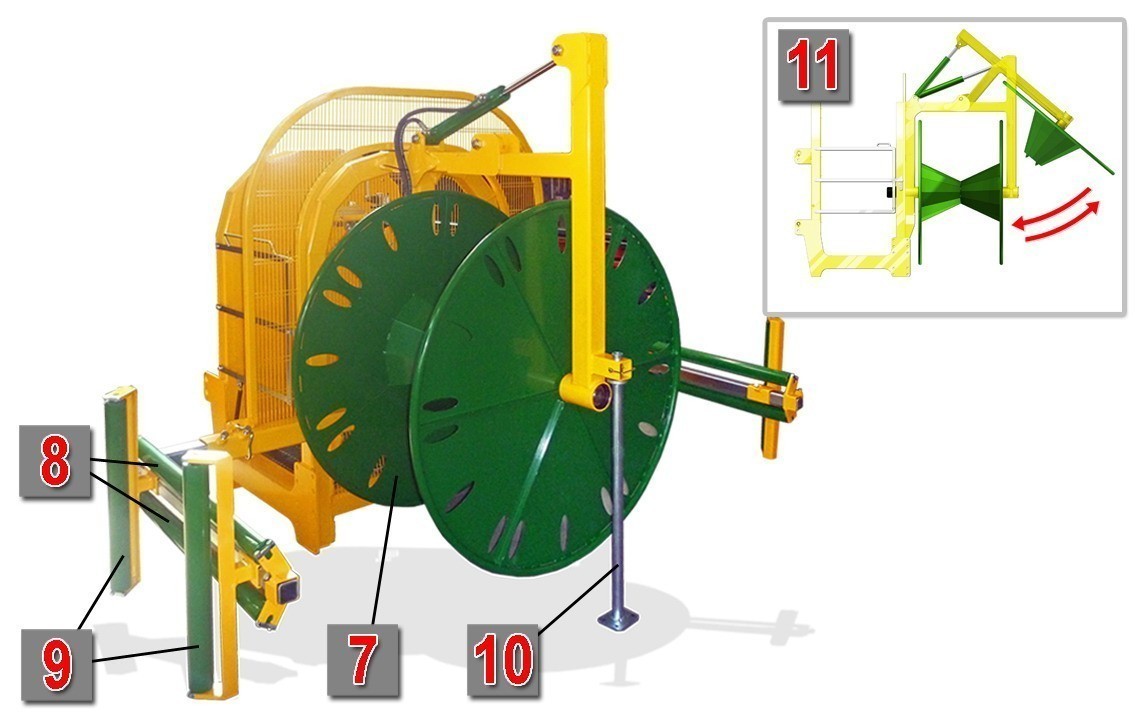

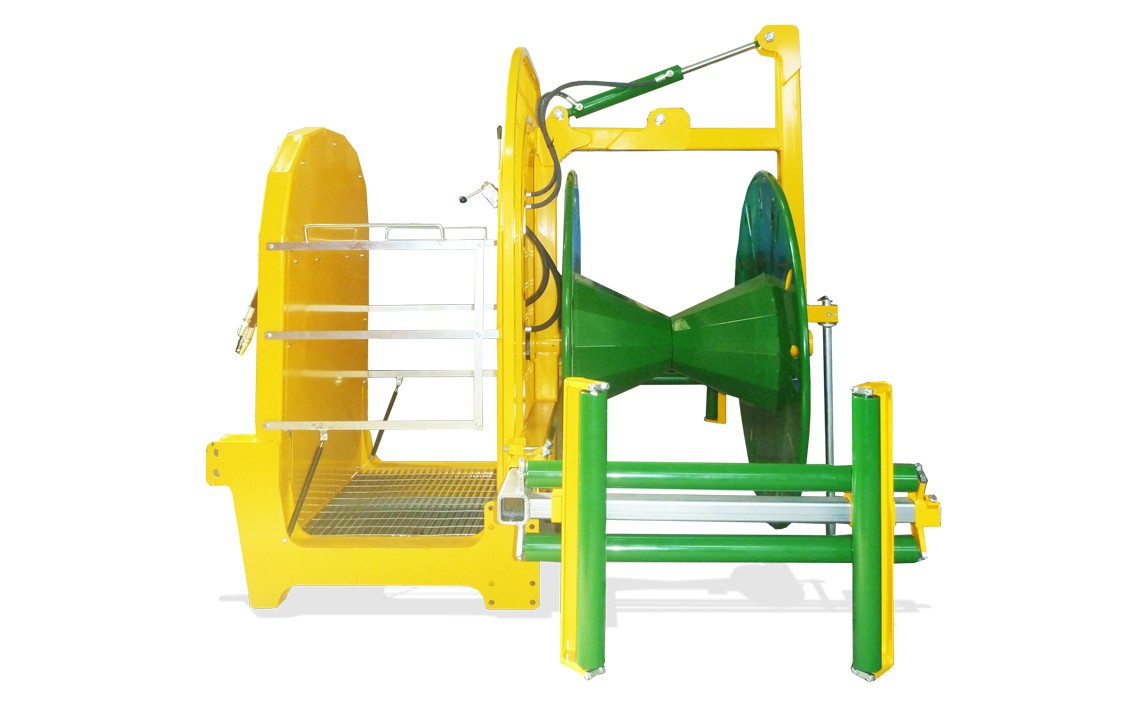

Machine structure

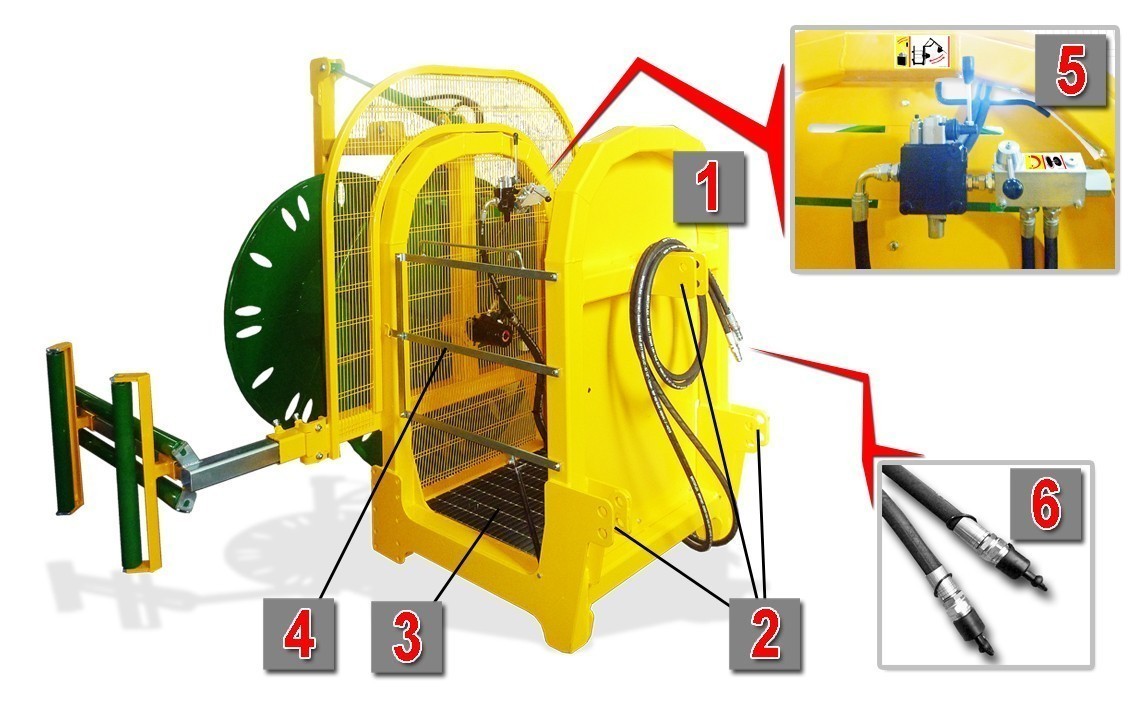

The machine is composed of:

1) Main frame

2) Third point

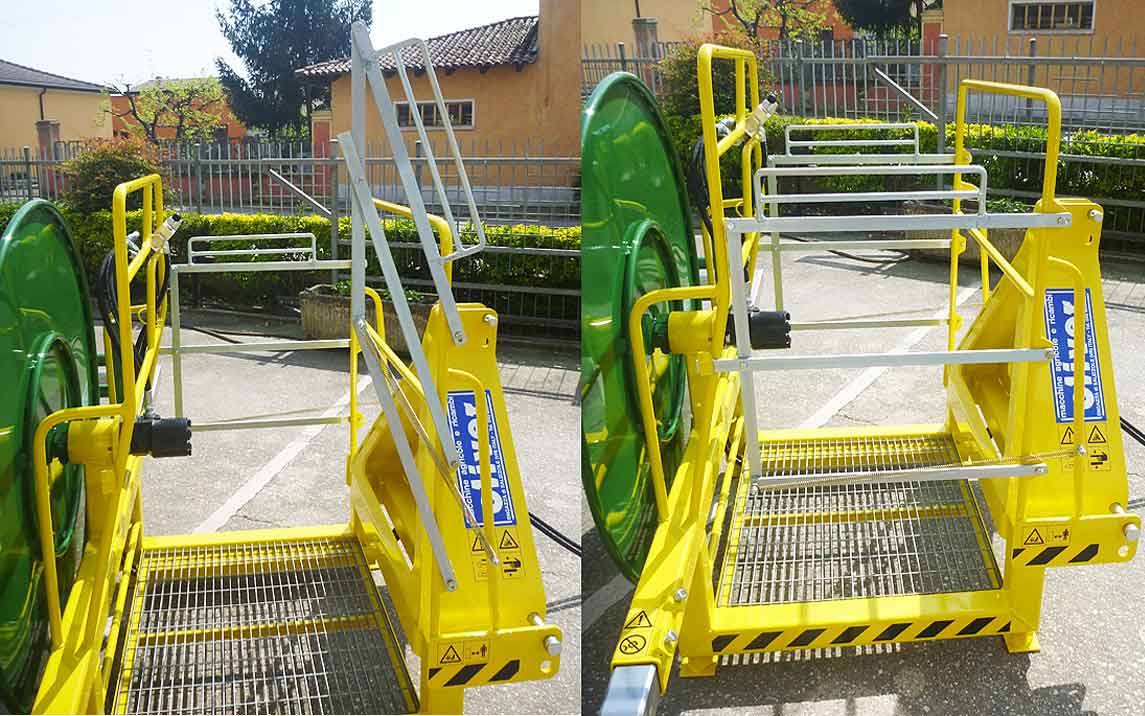

3) Operator platform

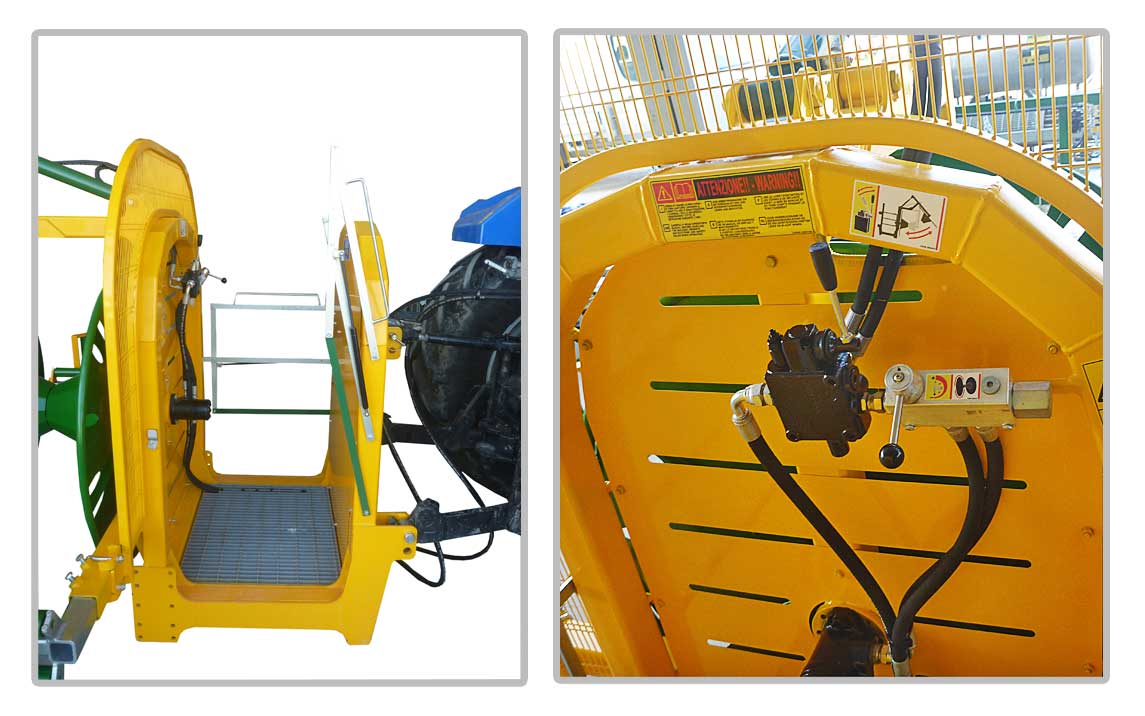

4) Operator protections

5) Command console

6) Hydraulic connections to the tractor

7) Roll winding roller

8) Rollers to convey horizontal hose

9) Rollers to convey vertical hose

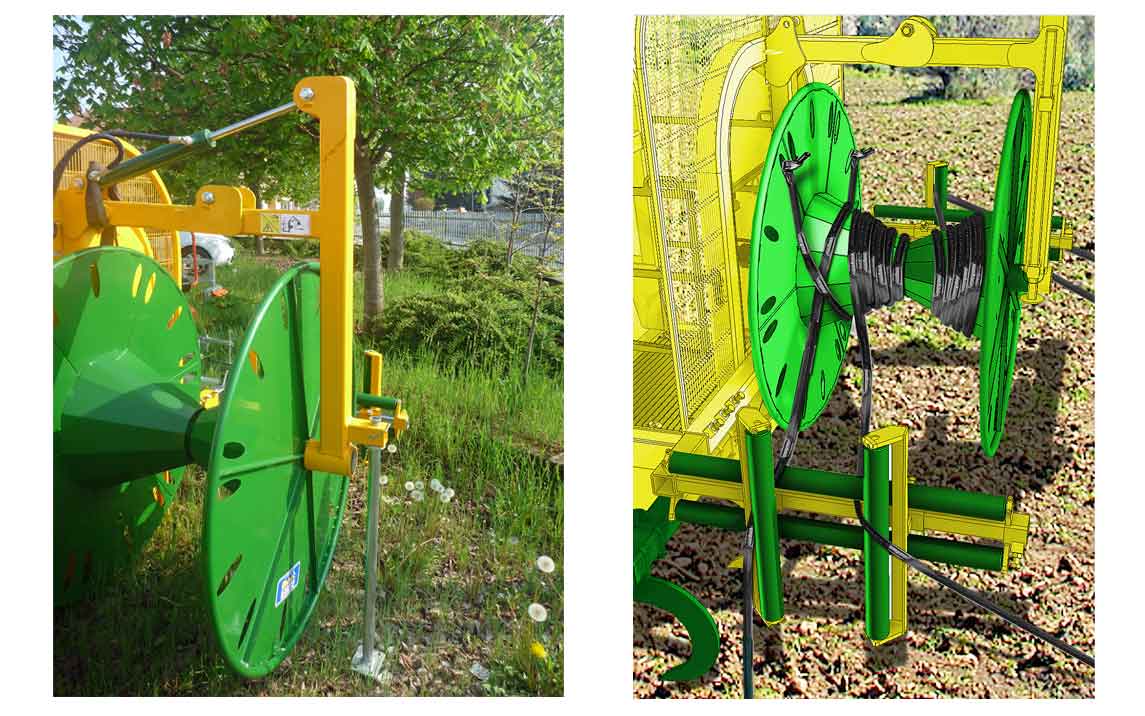

10) Machine stop pin

11) Coil unloading mechanism

Machine operation

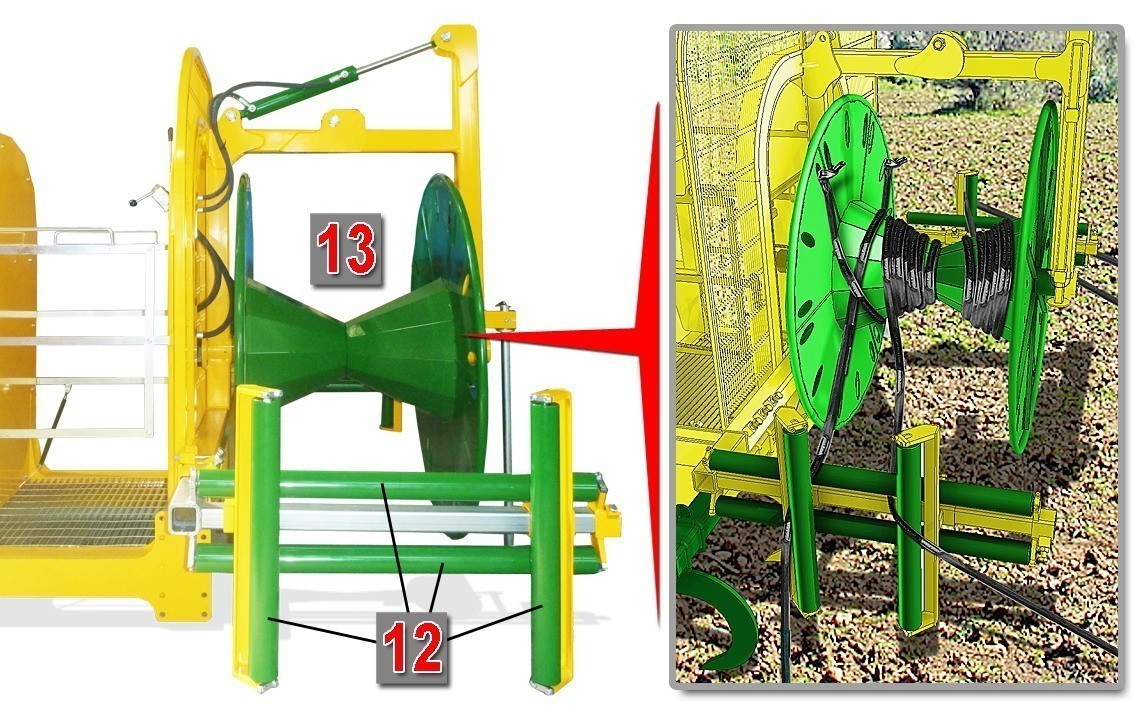

Thanks to the horizontal and vertical hoses conveyor rollers (12), we bring to the roll reel roller (13), several hoses simultaneously, creating a single collection reel.

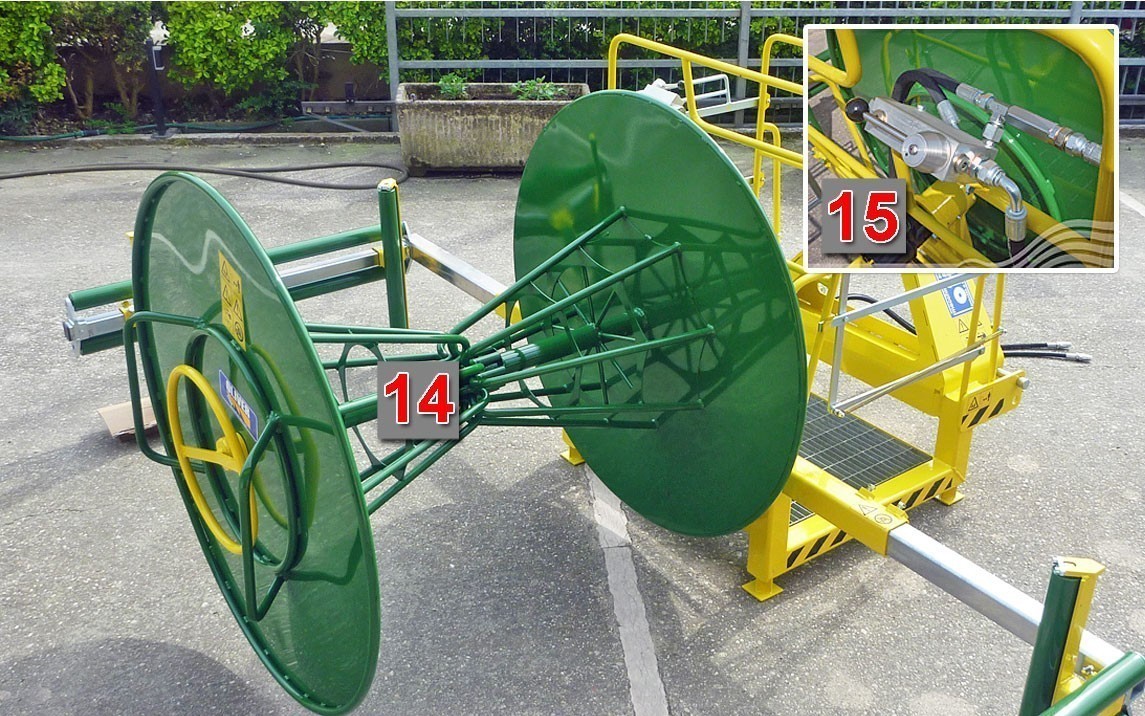

The coil reel roller (14) is driven by a hydraulic motor powered directly by the tractor’s hydraulic system. It is possible to adjust the rotation speed thanks to a lever flow regulator (15) placed in the operator’s control panel.

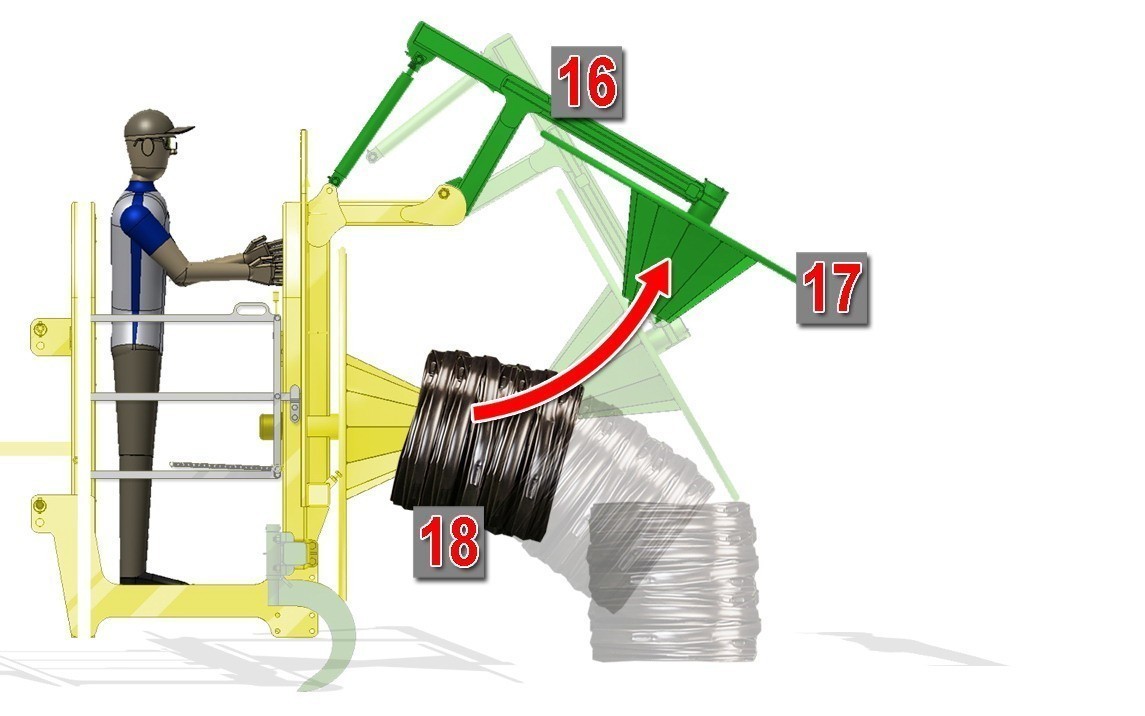

Thanks to the tilting opening mechanism (16) of the hose reel roller (17), the unloading of the bundle of the collected hoses (18) becomes simple and immediate.



Optional

Options list

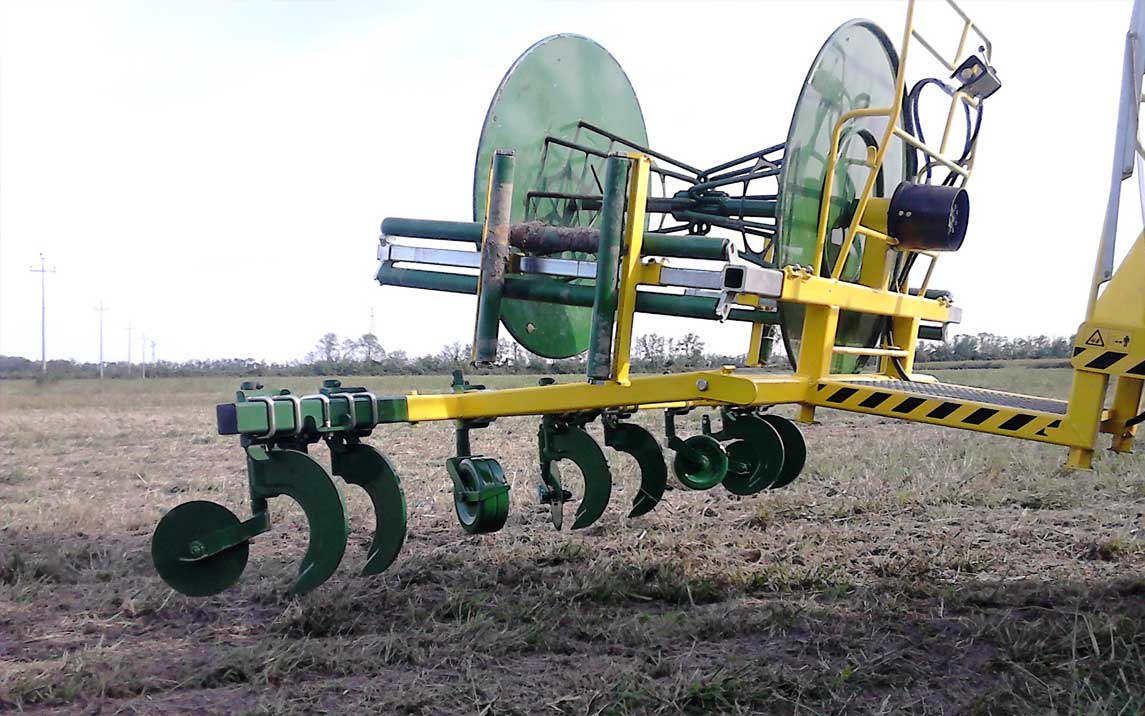

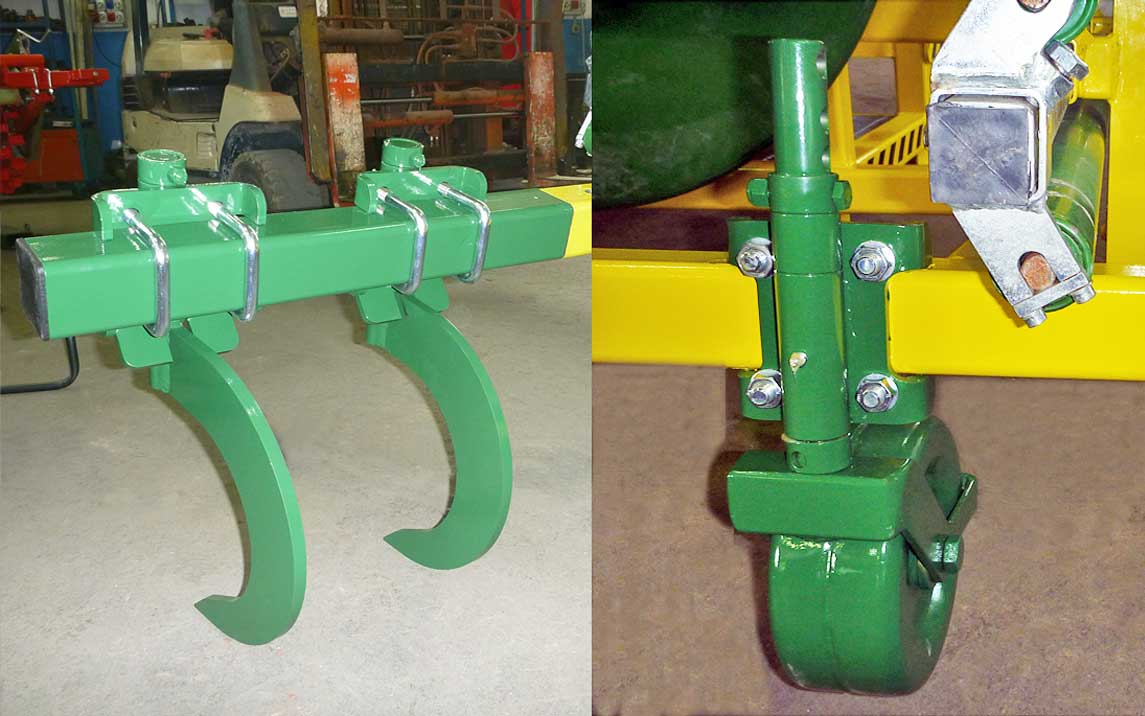

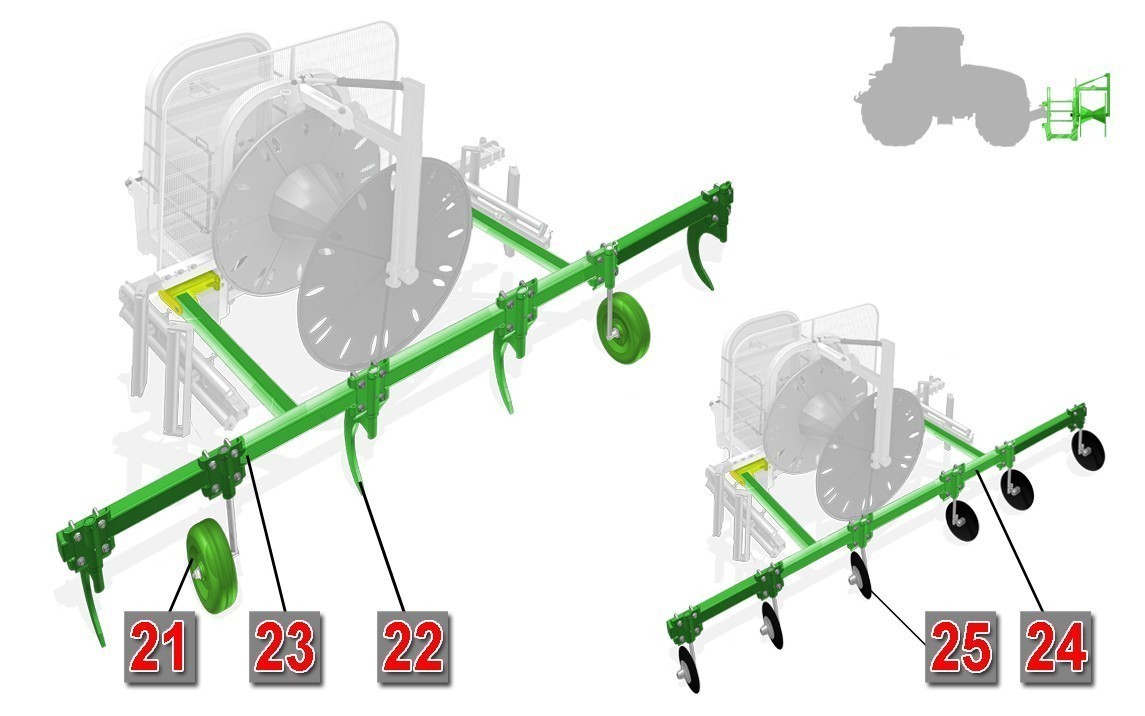

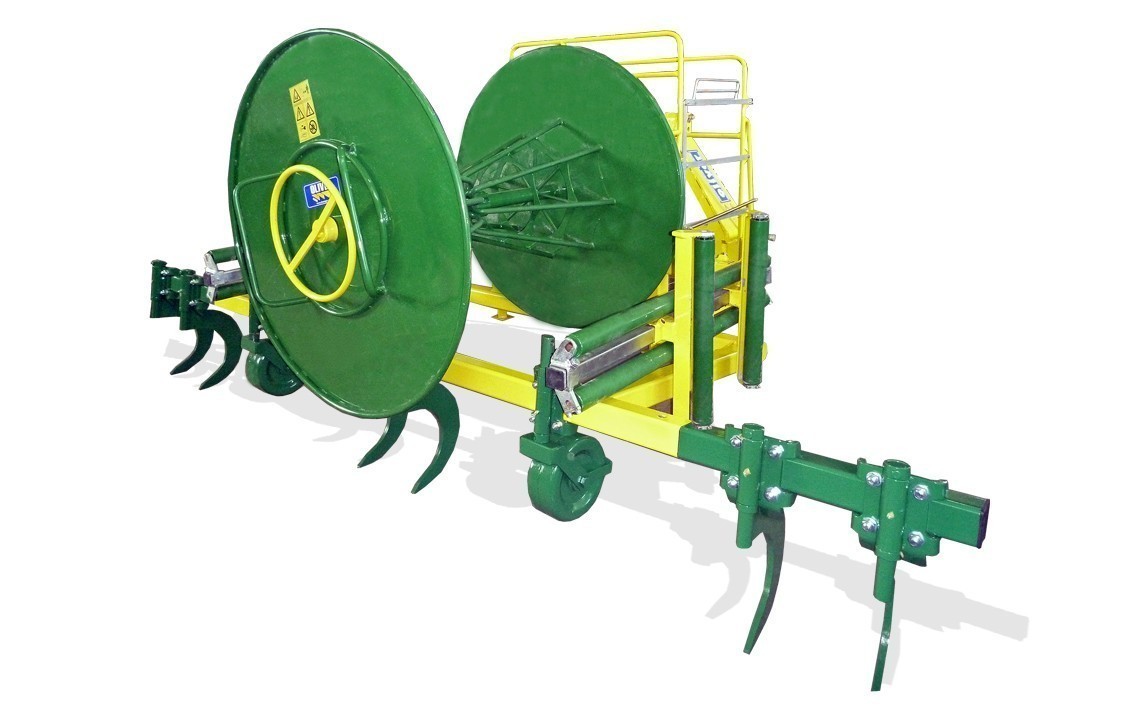

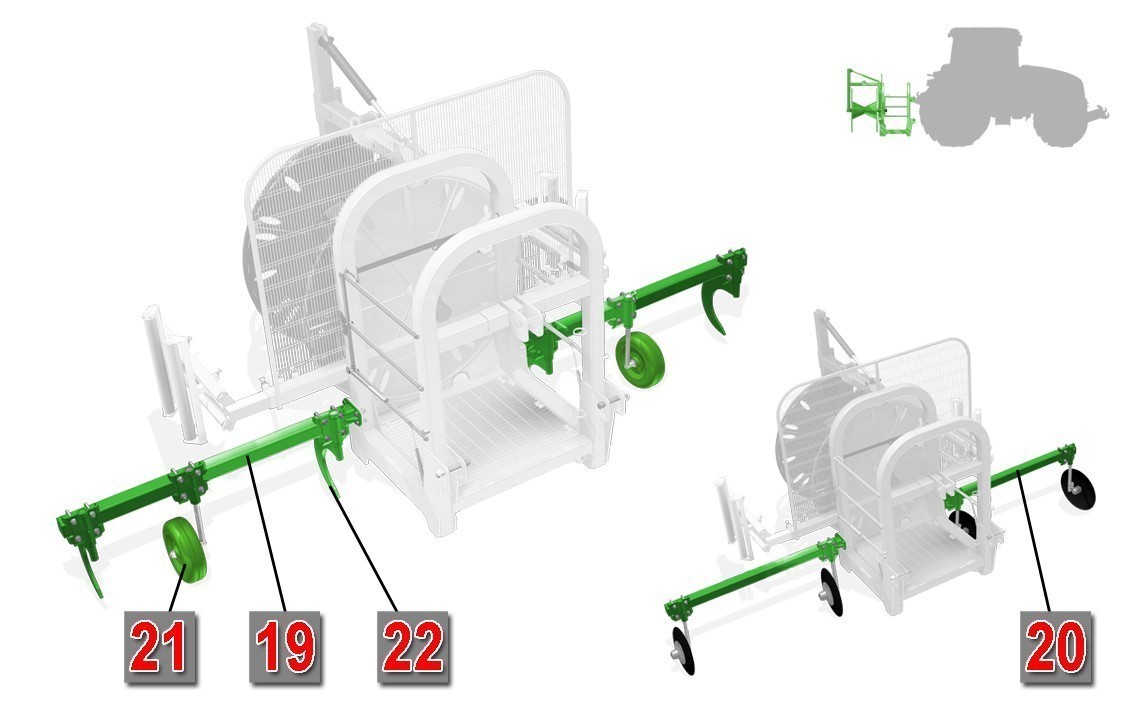

Accessories to break the soil crust

19) Frame supports accessories, on hose reels hooked behind the tractor

20) Chassis supports accessories, on hose reels hooked in front of the tractor

21) Stabilizing wheels, adjustable in height.

22) Diggers.

Accessories for cutting nylon

23) Frame supports accessories, on hose reels hooked behind the tractor

24) Frame supports accessories, on hose reels hooked in front of the tractor

25) Nylon cutting discs

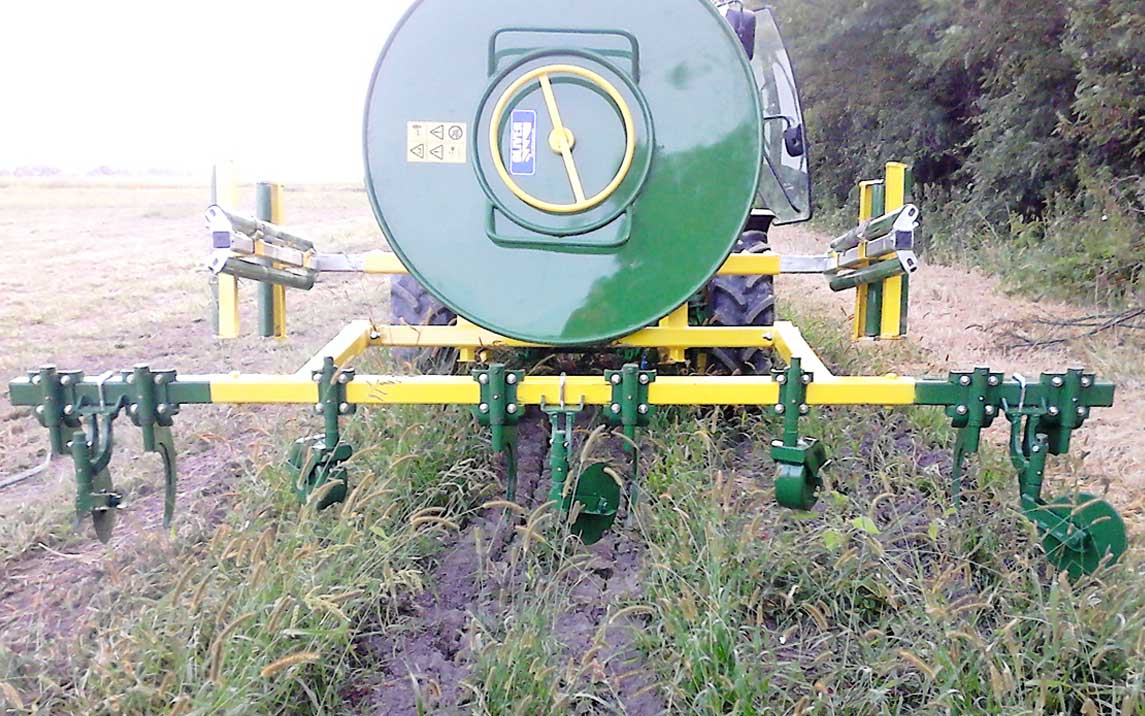

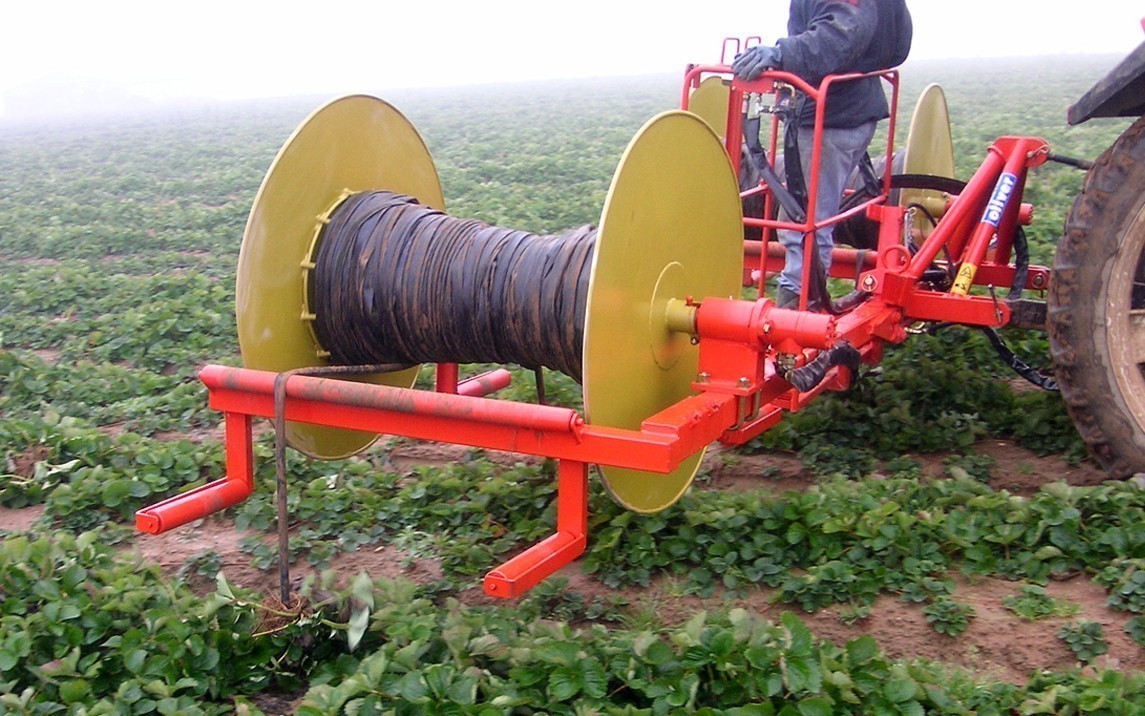

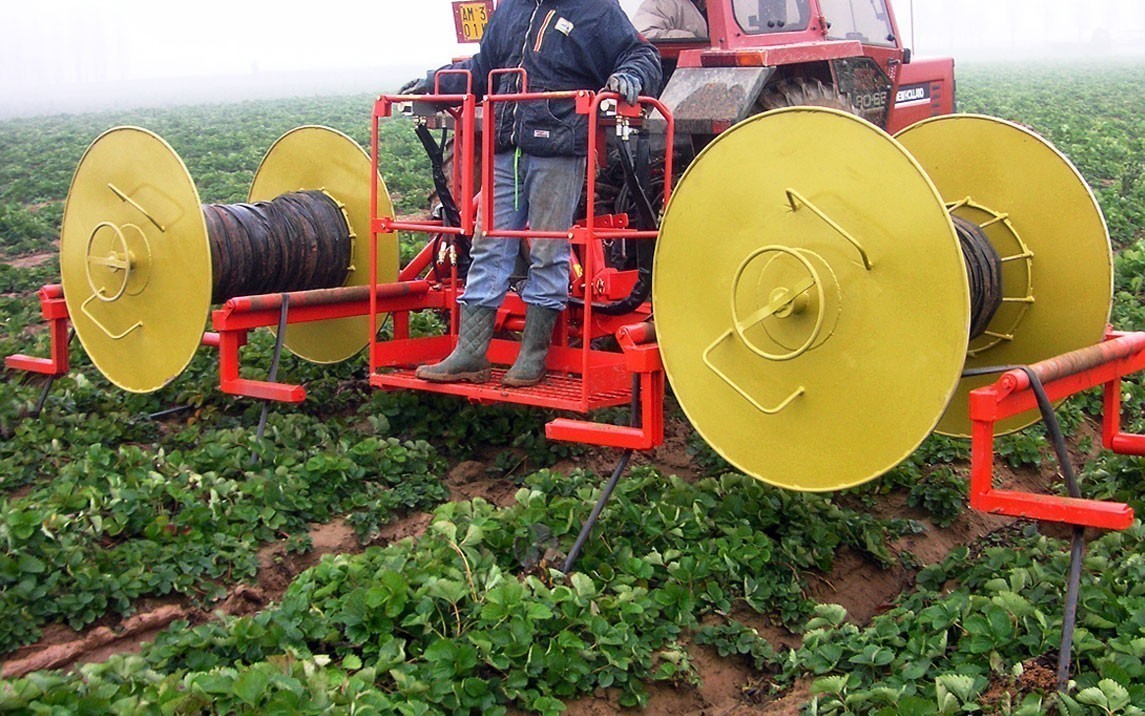

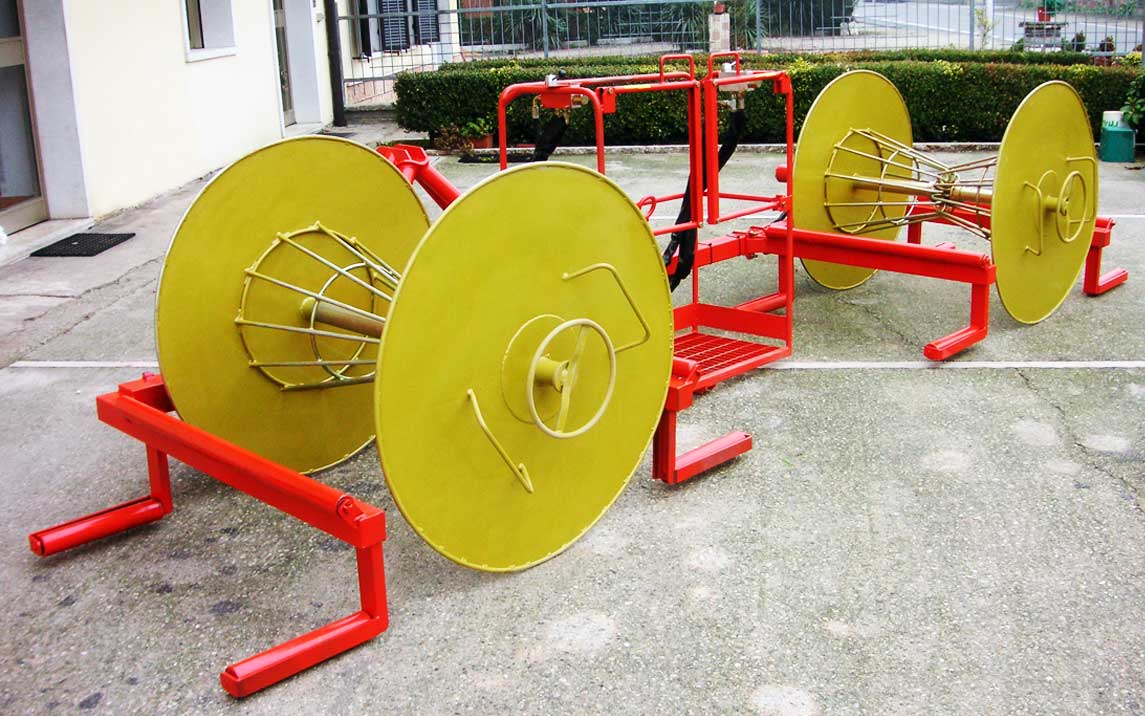

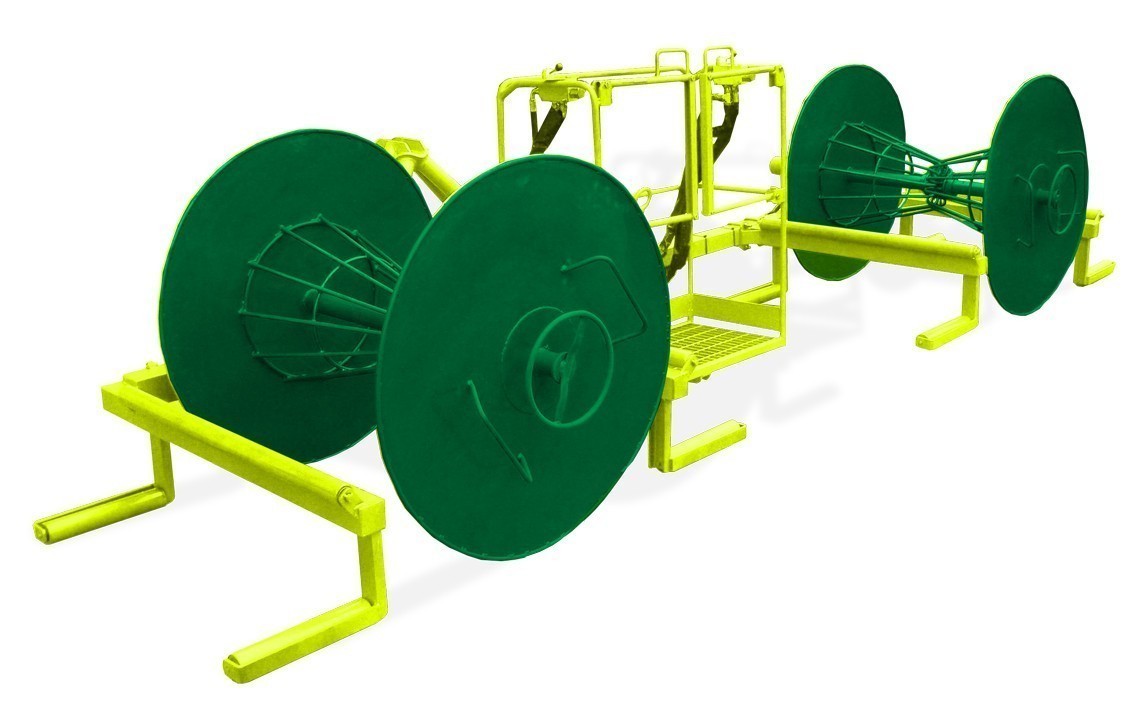

Photo - Machine and processing:
