Elfurbo Minitractor
self-propelled tool-carrier with inter row weeding elements

It is a self-propelled and polyvalent tool-carrier, designed to perform inter-row weeding with maximum practicality and with the help of a single operator.
Elfurbo is synonymous with:
– Compactness
– Comfort
– Visibility
– Time and staff savings

Applications on Elfurbo Minitractor

On all crops with distance
between the rows equal
to or greater than
30 cm

On all crops with distance
between the rows
from
15 to
35 cm

Work on all crops in narrow rows
with distance between the
rows spacing of
8 to
15 cm
Machine configuration:
Technical features
1) Light load bearing frame, no soil compression.
2) Sun and rain protection cover.
3) Engine compartment
4) Integral traction moved by hydraulic motors, with the help of gearboxes.
5) Front connection of the third hydraulic point, 300 mm vertical excursion, for special applications such as the fertilizer spreader.
6) Internal connection consisting of a square bar for fixing the Rotoblizz / Rotovert / Colibrì applications with a vertical travel of 300 mm.
7) Adjustable LED work light.
8) LED headlights.
9) LED taillights
10) High driving position, which allows a panoramic and precise view on processing.
11) The adjustable hydraulic guide, positioned sideways.
12) Controls positioned laterally with a comfortable armrest.
Engines Elfurbo Minitractor
Elfurbo Minitractor engines from:
– 18 HP-2 Cylinders for applications on 1 row
– 27 HP-3 Cylinders for applications on 2 rows
– 40 HP-4 Cylinders for applications on 3/4 rows
Technical data
13) Machine dimensions in cm:
- A) 230
- B) 110/200
- C) 230
- D) 350
14) Roadway dimensions in cm: 90/200
15) Turning diameter (E) 450 cm
Steering angle (F) 50 °
16) Side slope (G) 10%
17) Gradeable slope (H) 3%
18) Unladen mass 900 Kg.
At full load 1500/1700 Kg
20) Driving speed: 8 – 18 Km / h
21) Traction on 4 wheels, using engines
Plumbers + reducers.
22) Tires from ø760×180
23) Maximum permitted load:
1) 550 Kg
2) 150 Kg
24) With motor from:
18 CV / 2 CIL – N ° 1 FILA
27 CV / 3 CIL – N ° 2 FILE
40 CV / 4 CIL – N ° 3/4 FILE
Optional:
Options list
Close camera
To facilitate operator visibility on rows, we apply a camera placed in front of a single row.
The operator can see the work area enlarged, thanks to the monitor.
Hidraulyc Break the trace
Hydraulic socket services
Quick auxiliary couplings to feed any Fertilizer spreader or other systems driven by hydraulic systems.

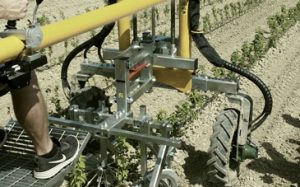

Photo - Machine and processing:
